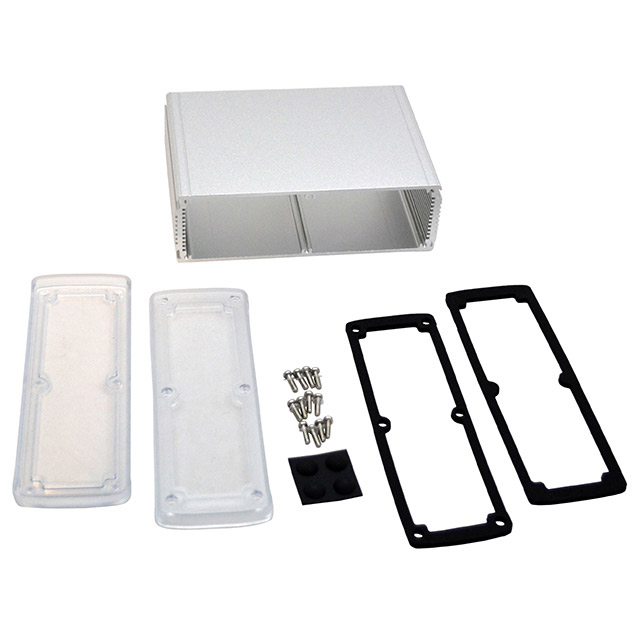

EXN-23364-SVP

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 61.1 MM, 129 MM, 177.7 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 61.1 MM, 129 MM, 177.7 MM, IP66

Technical Specifications

Parameters and characteristics for this part

Specification	EXN-23364-SVP

Area (L x W)	229 cm²
Area (L x W)	35.5 in²
Color	Clear, Silver
Container Type	Box
Design	End Panel(s)
Features	Card Guides, Sealing Gaskets
Height [z]	2.406 in
Height [z]	61.1 mm
Material	Metal, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	UL94 V-0
Ratings	IP66
Size / Dimension [x]	6.996 in
Size / Dimension [x]	177.69 mm
Size / Dimension [y]	5.079 in
Size / Dimension [y]	129 mm
Thickness [z]	2.79 mm
Thickness [z]	0.11 in
Weight	1.1 lbs
Weight	499 g

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 61.1 MM, 129 MM, 177.7 MM, IP66

Part	Design	Container Type	Weight	Weight	Height [z]	Height [z]	Material	Material Flammability Rating	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Features	Thickness [z]	Thickness [z]	Ratings
BUD INDUSTRIES EXN-23364-SVP	End Panel(s)	Box	1.1 lbs	499 g	2.406 in	61.1 mm	Aluminum with Plastic, Metal, Polycarbonate Panels	UL94 V-0	Clear, Silver	5.079 in	6.996 in	177.69 mm	129 mm	229 cm²	35.5 in²	Card Guides, Sealing Gaskets	2.79 mm	0.11 in	IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Box Metal, Aluminum with Plastic, Polycarbonate Panels Clear, Silver End Panel(s) 6.996" L x 5.079" W (177.69mm x 129.00mm) X 2.406" (61.10mm)
