C14610G0325004

Active

Amphenol Tuchel Industrial

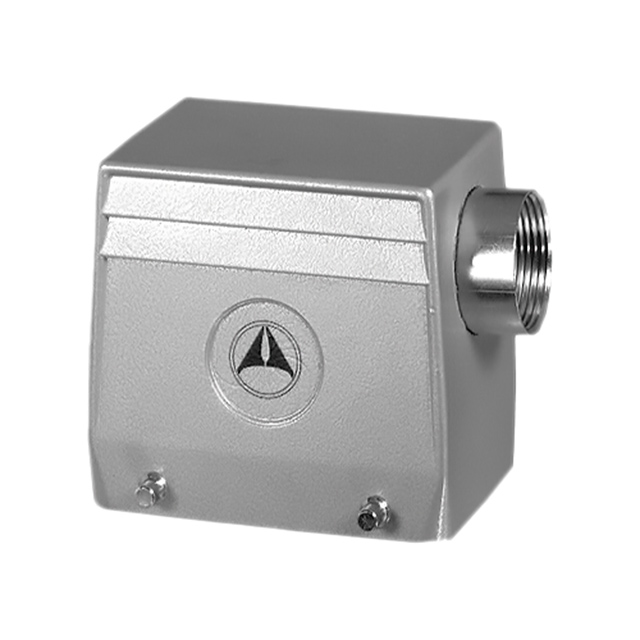

CONN HOOD SIDE ENTRY SZA32 PG21

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZA32 PG21

Technical Specifications

Parameters and characteristics for this part

Specification	C14610G0325004

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A32
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	56 mm
Size / Dimension [y]	2.205 in
Size / Dimension [z]	75 mm
Size / Dimension [z]	2.953 in
Style	Side Entry
Thread Size	PG21

Part	Size	Housing Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Thread Size	Style	Lock Location	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C14610G0325004	A32	Aluminum Alloy Die Cast	56 mm	2.205 in	75 mm	82 mm	2.953 in	3.228 in	IP65 - Dust Tight Water Resistant	PG21	Side Entry	Locking Clip (2) on Base Bottom	Hood	100 °C	-40 °C
Amphenol Tuchel Industrial C14610G0326014	A32	Aluminum Alloy Die Cast	56 mm	2.205 in	75 mm	82 mm	2.953 in	3.228 in	IP65 - Dust Tight Water Resistant	PG29	Top Entry	Locking Clip (2) on Base Bottom	Hood	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 40.87

General part information

Hood Connector Side Entry PG21 A32 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
