11SM23-T

Active

Honeywell Sensing and Productivity Solutions

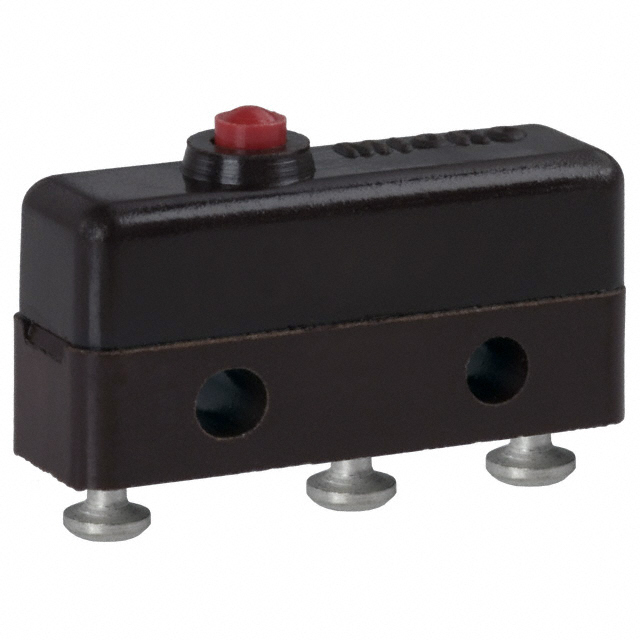

SWITCH SNAP ACTION SPDT 1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11SM23-T

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 1A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 29.99
		10	$ 24.85
		25	$ 23.06
		40	$ 22.19
		80	$ 20.97
		230	$ 19.23
		440	$ 18.94

Description

General part information

11SM Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11SM23-T	11SM Series

Actuator Type	Round (Pin Plunger)	Round (Pin Plunger)
Circuit	SPDT	SPDT
Current Rating (Amps)	-	4 - 300 A
Differential Travel	0.1 mm	0.025 - 0.1 mm
Differential Travel	0.004 in	0.001 - 0.004 in
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount, Through Hole
Operating Force	141 gf	56 - 198 gf
Operating Position	8.4 mm	8.4 mm
Operating Position	0.33 in	0.33 in
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overtravel	0.13 mm	0.13 mm
Overtravel	0.005 in	0.005 in
Pretravel	0.02 in	0.02 in
Pretravel	0.5 mm	0.5 mm
Release Force	28 gf	14 - 28 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Turret	Solder Lug, Solder Turret, Quick Connect, Solder, PC Pin, Quick Connect - 0.058 in (Round)
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Voltage Rating - AC	125 V	125 - 250 V
Voltage Rating - DC	30 V	30 - 125 V

11SM Series

SWITCH SNAP ACTION SPDT 5A 250V

Part	Current Rating (Amps)	Release Force	Mounting Type	Switch Function	Operating Force	Circuit	Overtravel	Overtravel	Pretravel	Pretravel	Operating Position	Operating Position	Mechanical Life	Termination Style	Actuator Type	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Differential Travel	Termination Style	Termination Style
Honeywell Sensing and Productivity Solutions 11SM3	5 A	28 gf	Chassis Mount	On-Mom	141 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Solder Lug	Round (Pin Plunger)	30 V	250 V	-55 °C	125 °C	0.1 mm	0.004 in
Honeywell Sensing and Productivity Solutions 11SM423		28 gf	Chassis Mount	On-Mom	99 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Solder Lug	Round (Pin Plunger)	30 V	125 V	-55 °C	125 °C	0.025 mm	0.001 in
Honeywell Sensing and Productivity Solutions 11SM303-T2		28 gf	Chassis Mount	On-Mom	141 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Solder Turret	Round (Pin Plunger)	30 V	125 V	-55 °C	125 °C	0.1 mm	0.004 in
Honeywell Sensing and Productivity Solutions 11SM76-T		28 gf	Chassis Mount	On-Mom	141 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Solder Turret	Round (Pin Plunger)	30 V	125 V	-55 °C	125 °C	0.1 mm	0.004 in
Honeywell Sensing and Productivity Solutions 11SM3-T2	5 A	28 gf	Chassis Mount	On-Mom	141 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Solder Turret	Round (Pin Plunger)	30 V	250 V	-55 °C	125 °C	0.1 mm	0.004 in
Honeywell Sensing and Productivity Solutions 11SM244-H4	5 A, 300 mA	28 gf	Chassis Mount	On-Mom	141 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Quick Connect, Solder	Round (Pin Plunger)	125 VDC	250 V	-55 °C	125 °C	0.1 mm	0.004 in	0.11 in	2.8 mm
Honeywell Sensing and Productivity Solutions 11SM601-H4	5 A	28 gf	Chassis Mount	On-Mom	99 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Quick Connect, Solder	Round (Pin Plunger)	30 V	250 V	-55 °C	125 °C	0.1 mm	0.004 in	0.11 in	2.8 mm
Honeywell Sensing and Productivity Solutions 11SM1-T	5 A	28 gf	Chassis Mount	On-Mom	141 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Solder Turret	Round (Pin Plunger)	30 V	250 V	-55 °C	125 °C	0.1 mm	0.004 in
Honeywell Sensing and Productivity Solutions 11SM4601-H4	5 A	28 gf	Chassis Mount	On-Mom	99 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Quick Connect, Solder	Round (Pin Plunger)	30 V	250 V	-55 °C	125 °C	0.025 mm	0.001 in	0.11 in	2.8 mm
Honeywell Sensing and Productivity Solutions 11SM23-H4		28 gf	Chassis Mount	On-Mom	141 gf	SPDT	0.13 mm	0.005 in	0.02 in	0.5 mm	8.4 mm	0.33 in	10000000 Cycles	Quick Connect, Solder	Round (Pin Plunger)	30 V	125 V	-55 °C	125 °C	0.1 mm	0.004 in	0.11 in	2.8 mm
