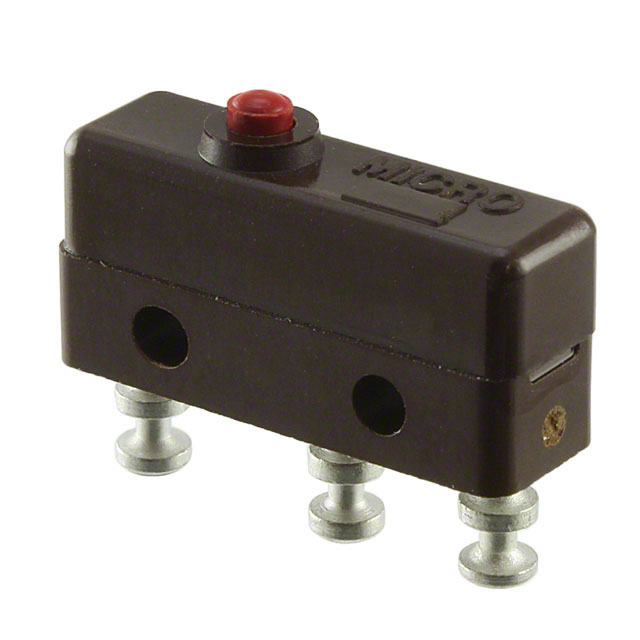

11SM3-T2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACTION SPDT 5A 250V

Part	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Operating Force	Actuator Type	Mechanical Life	Operating Position	Operating Position	Pretravel	Pretravel	Termination Style	Release Force	Overtravel	Overtravel	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions 11SM3-T2-MSC	SPDT	-55 °C	125 °C	Chassis Mount	30 V	250 V	On-Mom	5 A	141 gf	Round (Pin Plunger)	10000000 Cycles	8.4 mm	0.33 in	0.02 in	0.5 mm	Solder Turret	28 gf	0.13 mm	0.005 in	0.1 mm	0.004 in
Honeywell Sensing and Productivity Solutions 11SM3-T2	SPDT	-55 °C	125 °C	Chassis Mount	30 V	250 V	On-Mom	5 A	141 gf	Round (Pin Plunger)	10000000 Cycles	8.4 mm	0.33 in	0.02 in	0.5 mm	Solder Turret	28 gf	0.13 mm	0.005 in	0.1 mm	0.004 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
