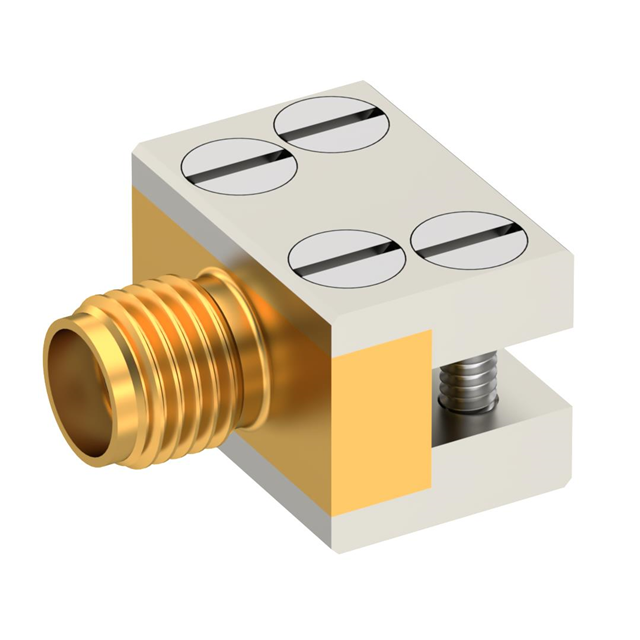

R125541000

Active

Radiall USA, Inc.

SMA / END LAUNCH FLANGE JACK REC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / END LAUNCH FLANGE JACK REC

Technical Specifications

Parameters and characteristics for this part

Specification	R125541000

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	600 V

Part	Impedance	Connector Style	Mounting Type	Center Contact Plating	Body Material	Number of Ports	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Frequency - Max [Max]	Mating Cycles	Connector Type	Voltage Rating	Center Contact Material	Dielectric Material	Body Finish	Housing Color
Radiall USA, Inc. R125541000	50 Ohms	SMA	Board Edge End Launch	Gold	Beryllium Copper	1	Compression	-65 ░C	105 ░C	Screw	18 GHz	500	Female Socket Jack	600 V	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 142.05

General part information

SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression

Technical documentation and resources

No documents available
