8-794535-1

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 6POS 6.35MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 6POS 6.35MM

Technical Specifications

Parameters and characteristics for this part

CONN PLUG HSG 6POS 6.35MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Insulation Material	Number of Rows	Pitch [x]	Pitch [x]	Fastening Type	Color	Number of Positions	Contact Type	Note	Row Spacing	Row Spacing	Connector Type
TE Connectivity AMP Connectors 8-794535-1	-55 °C	125 °C	Crimp	Free Hanging (In-Line)	Nylon, Polyamide (PA)	2	0.25 in	6.35 mm	Latch Lock	Black	6	Male Pin	Contacts Not Included	6.35 mm	0.25 in	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

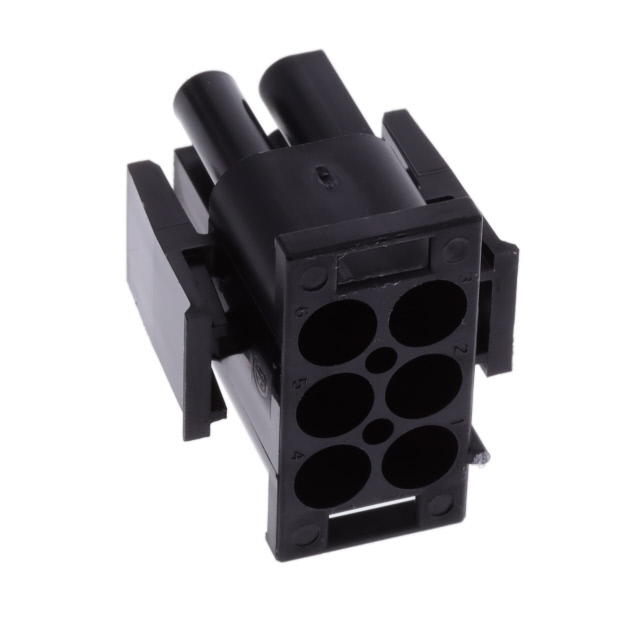

6 Rectangular Connectors - Housings Plug Black 0.250" (6.35mm)

Technical documentation and resources
