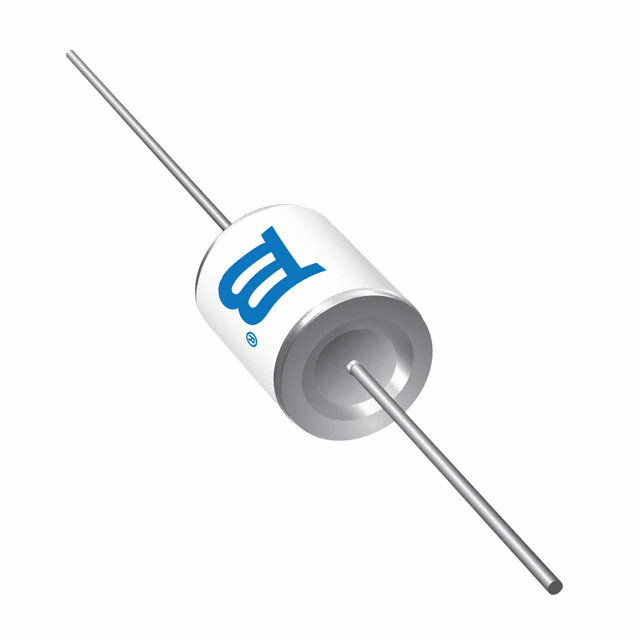

SA2-6300-DLT-STD

Active

Bourns Inc.

SURGE ARRESTER 6300V /TAPE & REEL - 13" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

SURGE ARRESTER 6300V /TAPE & REEL - 13" REEL

Technical Specifications

Parameters and characteristics for this part

Specification	SA2-6300-DLT-STD

Fail Short	False
Impulse Discharge Current (8/20µs)	5000 A
Impulse Discharge Current (8/20µs)	5 kA
Mounting Type	Through Hole
Number of Poles	2
Package / Case	Axial Cylinder
Tolerance [Max]	20 %
Tolerance [Min]	-15 %
Voltage - DC Spark Over (Nom)	6300 V

Part	Package / Case	Mounting Type	Number of Poles	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Voltage - DC Spark Over (Nom)	Tolerance [Min]	Tolerance [Max]	Fail Short
Bourns Inc. SA2-6300-DLT-STD	Axial Cylinder	Through Hole	2	5000 A	5 kA	6300 V	-15 %	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 1.43
Newark	Each	2500	$ 1.51

General part information

Gas Discharge Tube 6300 V 5000A (5kA) -15%, +20% 2 Pole Through Hole
