842-072-555-202
ActiveEDAC Inc.

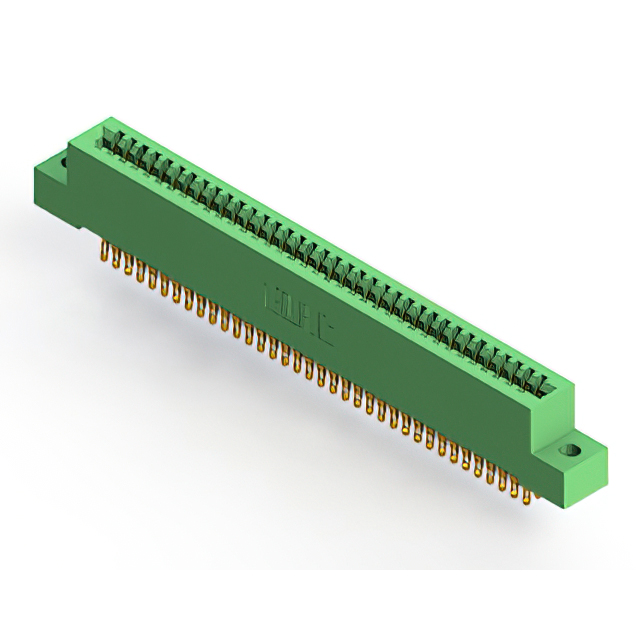

CONN EDGE DUAL FMALE 72POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-072-555-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-072-555-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-072 Series
| Part | Number of Positions | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Contact Finish | Contact Material | Mounting Type | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Pitch [x] | Pitch [x] | Color | Material - Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Through Hole | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | |
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | |
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Through Hole | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | |
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Through Hole Right Angle | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | |
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Board Edge Straddle Mount | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | Card Extender |
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | Flush Mount M3 Threaded Insert Top Opening | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | |||
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Board Edge Straddle Mount | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | Card Extender |
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Board Edge Straddle Mount | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | Card Extender | ||
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Through Hole Right Angle | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) | |
EDAC Inc. | 72 | Cantilever | Female | 10 Áin | 0.25 Ám | 36 | 125 °C | -40 °C | Dual | Gold | Copper Alloy | Through Hole Right Angle | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | 2.54 mm | 0.1 in | Green | Diallyl Phthalate (DAP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 97.34 | |
Description
General part information
842-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
