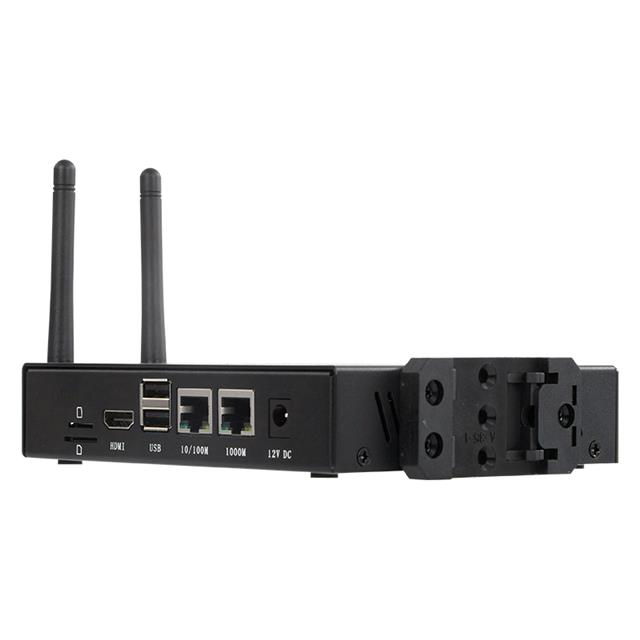

ED-CM4IND-1832-4C(EU)
ActiveEDATEC
SBC 1.5GHZ 4 CORE 8GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ED-CM4IND-1832-4C(EU)
ActiveEDATEC
SBC 1.5GHZ 4 CORE 8GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ED-CM4IND-1832-4C(EU) | ED-CM4IND-1832 Series |
|---|---|---|
| Analog Input:Output [custom] | 0 | 0 |
| Analog Input:Output [custom] | 3 | 3 |
| Cooling Type | Heat Sink | Heat Sink |
| Core Processor | Raspberry Pi CM4 # CM4108032: ARM Cortex-A72 | Raspberry Pi CM4 # CM4108032: ARM Cortex-A72 |
| Digital I/O Lines | 2 | 2 |
| Ethernet | 100 Mbps, 1000 Mbps, 10 Mbps | 10 - 1000 Mbps |
| Form Factor | Desktop | Desktop |
| Number of Cores | 4 | 4 |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| RS-232 (422, 485) | 3 | 3 |
| Size / Dimension [x] | 147.4 mm | 147.4 mm |
| Size / Dimension [x] | 5.803 " | 5.803 " |
| Size / Dimension [y] | 117.4 mm | 117.4 mm |
| Size / Dimension [y] | 4.622 " | 4.622 " |
| Size / Dimension [z] | 31.5 mm | 31.5 mm |
| Size / Dimension [z] | 1.24 " | 1.24 " |
| Speed | 1.5 GHz | 1.5 GHz |
| Storage Interface | eMMC, microSD, Flash | eMMC, microSD, Flash |
| USB | USB micro-B (1), USB 2.0 (2) | USB micro-B (1), USB 2.0 (2) |
| Video Outputs | HDMI | HDMI |
ED-CM4IND-1832 Series
SBC 1.5GHZ 4 CORE 8GB RAM
| Part | Digital I/O Lines | Form Factor | Speed | Number of Cores | Video Outputs | RS-232 (422, 485) | Storage Interface | USB | Cooling Type | Core Processor | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Ethernet | Operating Temperature [Max] | Operating Temperature [Min] | Analog Input:Output [custom] | Analog Input:Output [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDATEC ED-CM4IND-1832-C | 2 | Desktop | 1.5 GHz | 4 | HDMI | 3 | eMMC, Flash, microSD | USB 2.0 (2), USB micro-B (1) | Heat Sink | Raspberry Pi CM4 # CM4108032: ARM Cortex-A72 | 147.4 mm | 5.803 " | 31.5 mm | 117.4 mm | 1.24 " | 4.622 " | 10 Mbps, 100 Mbps, 1000 Mbps | 50 °C | -25 °C | 0 | 3 |
EDATEC ED-CM4IND-1832-4C(EU) | 2 | Desktop | 1.5 GHz | 4 | HDMI | 3 | eMMC, Flash, microSD | USB 2.0 (2), USB micro-B (1) | Heat Sink | Raspberry Pi CM4 # CM4108032: ARM Cortex-A72 | 147.4 mm | 5.803 " | 31.5 mm | 117.4 mm | 1.24 " | 4.622 " | 10 Mbps, 100 Mbps, 1000 Mbps | 50 °C | -25 °C | 0 | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 390.00 | |
Description
General part information
ED-CM4IND-1832 Series
Single Board Computer 1.5GHz 4 Core RAM Raspberry Pi CM4 # CM4108032: ARM Cortex-A72
