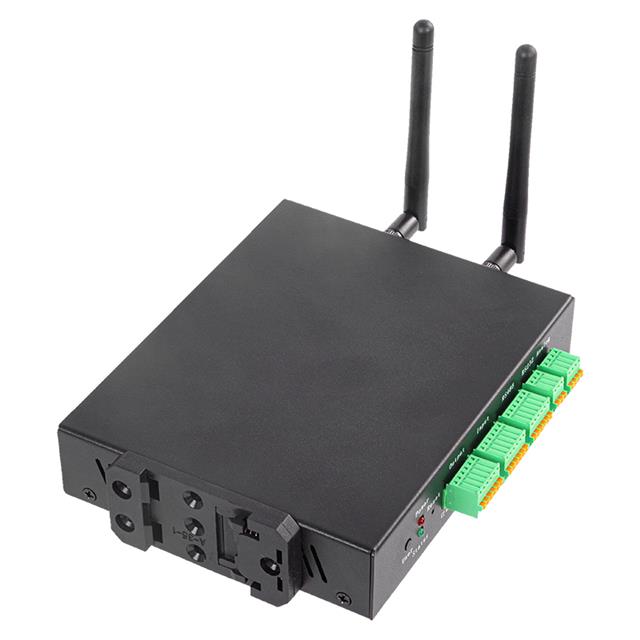

ED-CM4IND-1832-C

Active

EDATEC

SBC 1.5GHZ 4 CORE 8GB RAM

Search across all available documentation for this part.

Active

EDATEC

SBC 1.5GHZ 4 CORE 8GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ED-CM4IND-1832-C	ED-CM4IND-1832 Series

Analog Input:Output [custom]	0	0
Analog Input:Output [custom]	3	3
Cooling Type	Heat Sink	Heat Sink
Core Processor	Raspberry Pi CM4 # CM4108032: ARM Cortex-A72	Raspberry Pi CM4 # CM4108032: ARM Cortex-A72
Digital I/O Lines	2	2
Ethernet	100 Mbps, 1000 Mbps, 10 Mbps	10 - 1000 Mbps
Form Factor	Desktop	Desktop
Number of Cores	4	4
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-25 °C	-25 °C
RS-232 (422, 485)	3	3
Size / Dimension [x]	147.4 mm	147.4 mm
Size / Dimension [x]	5.803 "	5.803 "
Size / Dimension [y]	117.4 mm	117.4 mm
Size / Dimension [y]	4.622 "	4.622 "
Size / Dimension [z]	31.5 mm	31.5 mm
Size / Dimension [z]	1.24 "	1.24 "
Speed	1.5 GHz	1.5 GHz
Storage Interface	eMMC, microSD, Flash	eMMC, microSD, Flash
USB	USB micro-B (1), USB 2.0 (2)	USB micro-B (1), USB 2.0 (2)
Video Outputs	HDMI	HDMI

SBC 1.5GHZ 4 CORE 8GB RAM

Part	Digital I/O Lines	Form Factor	Speed	Number of Cores	Video Outputs	RS-232 (422, 485)	Storage Interface	USB	Cooling Type	Core Processor	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Ethernet	Operating Temperature [Max]	Operating Temperature [Min]	Analog Input:Output [custom]	Analog Input:Output [custom]
EDATEC ED-CM4IND-1832-C	2	Desktop	1.5 GHz	4	HDMI	3	eMMC, Flash, microSD	USB 2.0 (2), USB micro-B (1)	Heat Sink	Raspberry Pi CM4 # CM4108032: ARM Cortex-A72	147.4 mm	5.803 "	31.5 mm	117.4 mm	1.24 "	4.622 "	10 Mbps, 100 Mbps, 1000 Mbps	50 °C	-25 °C	0	3
EDATEC ED-CM4IND-1832-4C(EU)	2	Desktop	1.5 GHz	4	HDMI	3	eMMC, Flash, microSD	USB 2.0 (2), USB micro-B (1)	Heat Sink	Raspberry Pi CM4 # CM4108032: ARM Cortex-A72	147.4 mm	5.803 "	31.5 mm	117.4 mm	1.24 "	4.622 "	10 Mbps, 100 Mbps, 1000 Mbps	50 °C	-25 °C	0	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Board Computer 1.5GHz 4 Core RAM Raspberry Pi CM4 # CM4108032: ARM Cortex-A72
