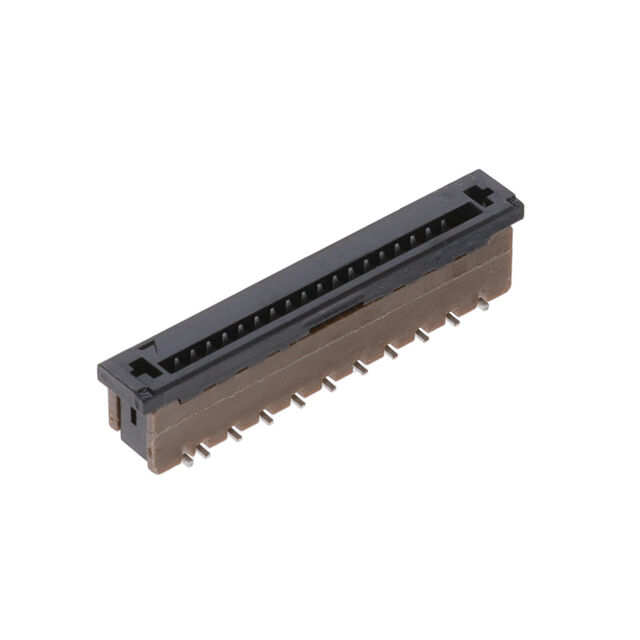

SFW18S-2STME1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 18POS 1MM SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 18POS 1MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFW18S-2STME1LF

Actuator Material	Thermoplastic, Glass Filled
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.33 mm
Flat Flex Type	FPC, FFC
Height Above Board	5.3 mm
Height Above Board	0.209 in
Housing Color	Brown
Housing Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Number of Positions	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

Part	Voltage Rating	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Number of Positions	Housing Color	Connector/Contact Type	FFC, FCB Thickness	Material Flammability Rating	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Flat Flex Type	Termination	Actuator Material	Contact Material	Cable End Type	Actuator Color	Features	Locking Feature
Amphenol ICC (FCI) SFW18S-2STME1LF	100 V	20	105 ░C	-55 °C	Thermoplastic Glass Filled	18	Brown	Contacts Vertical - 1 Sided	0.33 mm	UL94 V-0	0.039 in	1 mm	Surface Mount	5.3 mm	0.209 in	Tin	FFC FPC	Solder	Thermoplastic Glass Filled	Phosphor Bronze
Amphenol ICC (FCI) SFW18S-2STE1LF	100 V	20	105 ░C	-55 °C	Thermoplastic Glass Filled	18	Brown	Contacts Vertical - 1 Sided	0.3 mm	UL94 V-0	0.039 in	1 mm	Surface Mount	5.3 mm	0.209 in	Tin	FFC FPC	Kinked Pin	Thermoplastic Glass Filled	Phosphor Bronze	Straight Tapered
Amphenol ICC (FCI) SFW18S-6STME1LF	100 V	10	85 °C	-55 °C	Thermoplastic Glass Filled	18	Brown	Contacts Vertical - 1 Sided	0.33 mm	UL94 V-0	0.039 in	1 mm	Surface Mount	5.3 mm	0.209 in	Tin	CIC	Solder	Thermoplastic Glass Filled	Phosphor Bronze
Amphenol ICC (FCI) SFW18S-6STME1	100 V	10	85 °C	-55 °C	Thermoplastic Glass Filled	18	Brown	Contacts Vertical - 1 Sided	0.3 mm	UL94 V-0	0.039 in	1 mm	Surface Mount	5.3 mm	0.209 in	Tin Alloy	CIC	Solder	Thermoplastic Glass Filled	Phosphor Bronze	Tapered	Black	Solder Retention Zero Insertion Force (ZIF)	Slide Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
