H3AAH-3406G

Active

Assmann WSW Components

IDC CBL - HHSC34H/AE34G/HHSC34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSC34H/AE34G/HHSC34H

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Shielding	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish	Length	Length	Length	Connector Type	Number of Rows	Cable Termination	Color	Length [x]	Length [x]
Assmann WSW Components H3AAH-3406G	34	Unshielded	15 µin	0.38 µm	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold	152.4 mm	6 "	0.5 '	Socket to Socket	2	IDC
Assmann WSW Components H3AAH-3436M	34	Unshielded	15 µin	0.38 µm	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold				Socket to Socket	2	IDC	Multiple Ribbon	3 ft	914.4 mm
Assmann WSW Components H3AAH-3436G	34	Unshielded	15 µin	0.38 µm	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold				Socket to Socket	2	IDC		3 ft	914.4 mm
Assmann WSW Components H3AAH-3418M	34	Unshielded	15 µin	0.38 µm	0.05 "	1.27 mm	0.1 in	2.54 mm	Gold				Socket to Socket	2	IDC	Multiple Ribbon	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

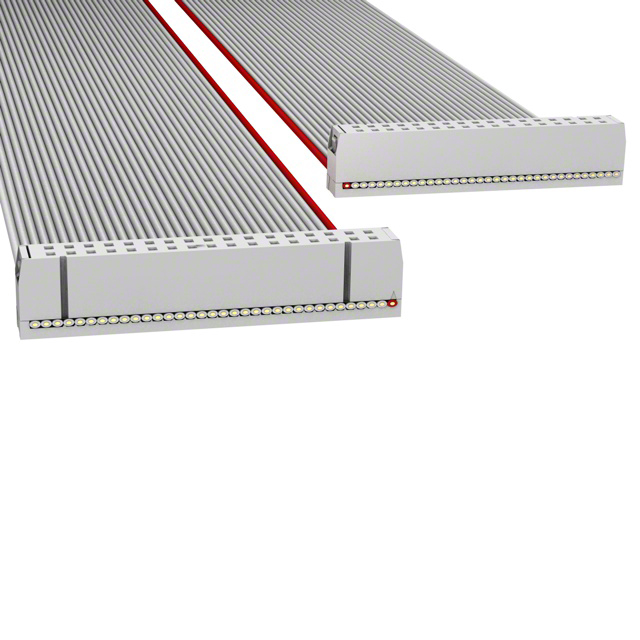

34 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
