794616-4
ActiveTE Connectivity AMP Connectors

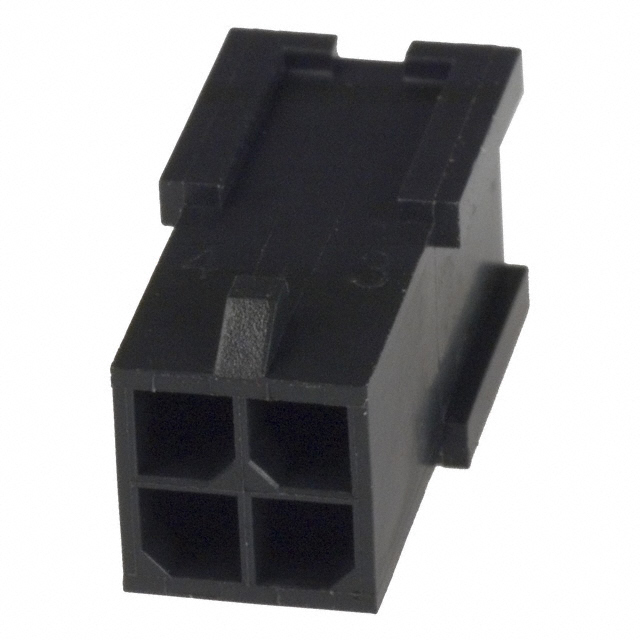

CONN PLUG HSG 4POS 3.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794616-4
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 4POS 3.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794616-4 | 794616 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 2 - 24 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 3 mm | 3 mm |
| Pitch [x] | 0.118 in | 0.118 in |
| Row Spacing [x] | 0.118 in | 0.118 in |
| Row Spacing [x] | 3 mm | 3 mm |
794616 Series
CONN PLUG HSG 20POS 3.00MM
| Part | Connector Type | Insulation Material | Fastening Type | Mounting Type | Note | Number of Rows | Row Spacing [x] | Row Spacing [x] | Number of Positions | Contact Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-794616-0 | Plug | Polyamide (PA66), Nylon 6/6 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 20 | Male Pin | Black | -40 °C | 105 ░C | Crimp | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 1-794616-4 | Plug | Polyamide (PA66), Nylon 6/6 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 14 | Male Pin | Black | -40 °C | 105 ░C | Crimp | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 3-794616-4 | Plug | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 4 | Male Pin | Black | Crimp | 3 mm | 0.118 in | |||
TE Connectivity AMP Connectors 3-794616-0 | Plug | Polyamide (PA66), Nylon 6/6 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 10 | Male Pin | Black | -40 °C | 105 ░C | Crimp | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 794616-4 | Plug | Polyamide (PA66), Nylon 6/6 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 4 | Male Pin | Black | -40 °C | 105 ░C | Crimp | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 3-794616-2 | Plug | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 2 | Male Pin | Black | -40 °C | 105 ░C | Crimp | |||
TE Connectivity AMP Connectors 2-794616-4 | Plug | Polyamide (PA66), Nylon 6/6 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 24 | Male Pin | Black | -40 °C | 105 ░C | Crimp | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 794616-6 | Plug | Polyamide (PA66), Nylon 6/6 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 6 | Male Pin | Black | -40 °C | 105 ░C | Crimp | 3 mm | 0.118 in |
TE Connectivity AMP Connectors 1-794616-0 | Plug | Polyamide (PA66), Nylon 6/6 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | 2 | 0.118 in | 3 mm | 10 | Male Pin | Black | -40 °C | 105 ░C | Crimp | 3 mm | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.25 | |||
| 3000 | $ 0.25 | |||
Description
General part information
794616 Series
4 Rectangular Connectors - Housings Plug Black 0.118" (3.00mm)
Documents
Technical documentation and resources
