1-794616-0

Active

TE Connectivity AMP Connectors

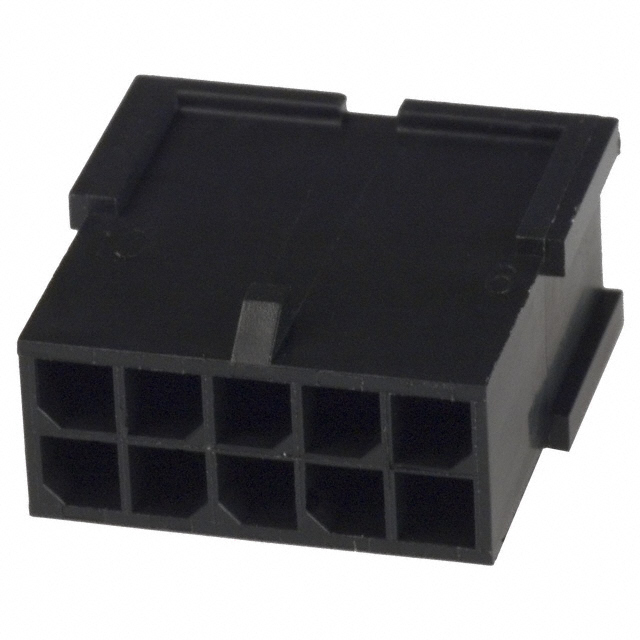

CONN PLUG HSG 10POS 3.00MM

Deep-Dive with AI

Search across all available documentation for this part.

1-794616-0

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 10POS 3.00MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.77
		10	$ 0.64
		25	$ 0.59
		50	$ 0.56
		100	$ 0.53
		250	$ 0.49
		500	$ 0.47
		1000	$ 0.44
		2500	$ 0.41
		3000	$ 0.42

Description

General part information

794616 Series

10 Rectangular Connectors - Housings Plug Black 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794616-0	794616 Series

Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	10	2 - 24
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	3 mm	3 mm
Pitch [x]	0.118 in	0.118 in
Row Spacing [x]	0.118 in	0.118 in
Row Spacing [x]	3 mm	3 mm

794616 Series

CONN PLUG HSG 20POS 3.00MM

Part	Connector Type	Insulation Material	Fastening Type	Mounting Type	Note	Number of Rows	Row Spacing [x]	Row Spacing [x]	Number of Positions	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 2-794616-0	Plug	Polyamide (PA66), Nylon 6/6	Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	20	Male Pin	Black	-40 °C	105 ░C	Crimp	3 mm	0.118 in
TE Connectivity AMP Connectors 1-794616-4	Plug	Polyamide (PA66), Nylon 6/6	Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	14	Male Pin	Black	-40 °C	105 ░C	Crimp	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794616-4	Plug		Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	4	Male Pin	Black			Crimp	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794616-0	Plug	Polyamide (PA66), Nylon 6/6	Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	10	Male Pin	Black	-40 °C	105 ░C	Crimp	3 mm	0.118 in
TE Connectivity AMP Connectors 794616-4	Plug	Polyamide (PA66), Nylon 6/6	Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	4	Male Pin	Black	-40 °C	105 ░C	Crimp	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794616-2	Plug		Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	2	Male Pin	Black	-40 °C	105 ░C	Crimp
TE Connectivity AMP Connectors 2-794616-4	Plug	Polyamide (PA66), Nylon 6/6	Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	24	Male Pin	Black	-40 °C	105 ░C	Crimp	3 mm	0.118 in
TE Connectivity AMP Connectors 794616-6	Plug	Polyamide (PA66), Nylon 6/6	Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	6	Male Pin	Black	-40 °C	105 ░C	Crimp	3 mm	0.118 in
TE Connectivity AMP Connectors 1-794616-0	Plug	Polyamide (PA66), Nylon 6/6	Locking Ramp	Free Hanging (In-Line)	Contacts Not Included	2	0.118 in	3 mm	10	Male Pin	Black	-40 °C	105 ░C	Crimp	3 mm	0.118 in
