M2112TCW01

Obsolete

NKK Switches

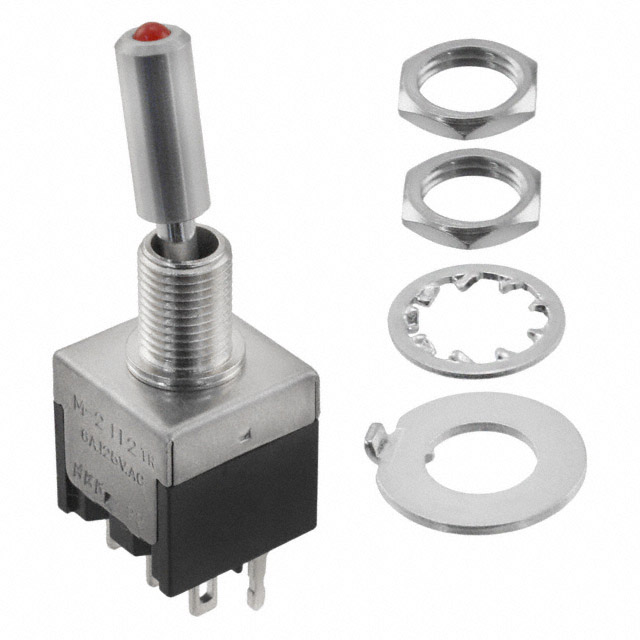

SWITCH TOGGLE SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2112TCW01

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2112TCW01

Actuator Length [x]	14.7 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.2 VDC
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2112TC Series

Part	Actuator Length [x]	Circuit	Electrical Life	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Voltage Rating - AC	Features	Panel Cutout Dimensions [diameter]	Termination Style	Current Rating (Amps)	Illumination	Illumination Voltage (Nominal)	Illumination Type, Color	Actuator Type	Bushing Thread	Voltage Rating - DC	Switch Function	Mounting Type
NKK Switches M2112TCW01/U	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	125 V	Epoxy Sealed Terminals	6.5 mm	Solder Lug	3 A 6 A	Illuminated	2.2 VDC	LED Red	Standard Round	1/4-40	30 V	On-On
NKK Switches M2112TCW03	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	125 V	Epoxy Sealed Terminals	6.5 mm	PC Pin	3 A 6 A	Illuminated	2.2 VDC	LED Red	Standard Round	1/4-40	30 V	On-On
NKK Switches M2112TCW01	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	125 V	Epoxy Sealed Terminals	6.5 mm	Solder Lug	3 A 6 A	Illuminated	2.2 VDC	LED Red	Standard Round	1/4-40	30 V	On-On
NKK Switches M2112TCFG01	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	28 V	Epoxy Sealed Terminals	6.5 mm	Solder Lug	0.4 VA	Illuminated	1.7 VDC 2 VDC	Green/Red LED	Standard Round	Unthreaded	28 V	On-On
NKK Switches M2112TCFW03	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	125 V	Epoxy Sealed Terminals	6.5 mm	PC Pin	3 A 6 A	Illuminated	1.7 VDC 2 VDC	Green/Red LED	Standard Round	1/4-40	30 V	On-On
NKK Switches M2112TCFW01	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	125 V	Epoxy Sealed Terminals	6.5 mm	Solder Lug	3 A 6 A	Illuminated	1.7 VDC 2 VDC	Green/Red LED	Standard Round	1/4-40	30 V	On-On
NKK Switches M2112TCFW13	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	125 V	Epoxy Sealed Terminals		PC Pin	3 A 6 A	Illuminated	1.7 VDC 2 VDC	Green/Red LED	Standard Round	Unthreaded	30 V	On-On	Through Hole
NKK Switches M2112TCW01/CUL	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	125 V	Epoxy Sealed Terminals	6.5 mm	Solder Lug	3 A 6 A	Illuminated	2.2 VDC	LED Red	Standard Round	1/4-40	30 V	On-On
NKK Switches M2112TCFG30	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	28 V	Epoxy Sealed Terminals		PC Pin	0.4 VA	Illuminated	1.7 VDC 2 VDC	Green/Red LED	Standard Round	Unthreaded	28 V	On-On	Through Hole Right Angle
NKK Switches M2112TCW02	14.7 mm	SPDT	25000 Steps	55 °C	-10 °C	125 V	Epoxy Sealed Terminals	6.5 mm	Quick Connect - 0.062" (1.5mm)	3 A 6 A	Illuminated	2.2 VDC	LED Red	Standard Round	1/4-40	30 V	On-On
