R123659102

Active

Radiall USA, Inc.

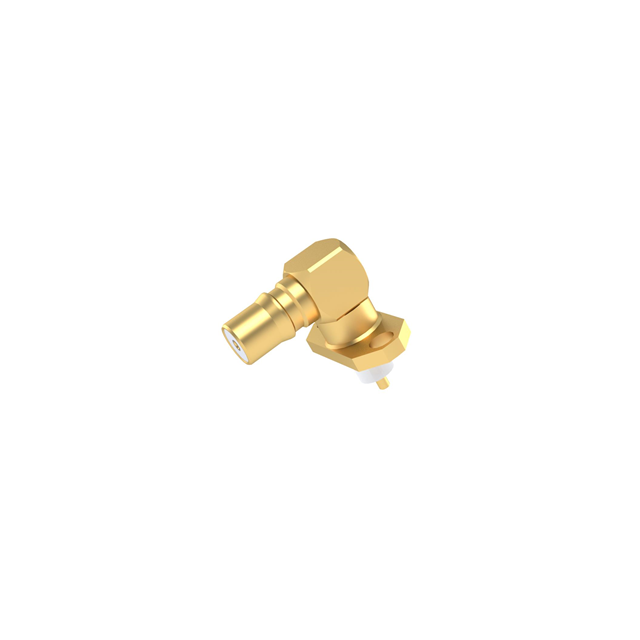

QMA / 2 HOLE FLANGE JACK RECEPTA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA / 2 HOLE FLANGE JACK RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	R123659102

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Insertion Loss	0.25 dB
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Center Contact Plating	Number of Ports	Dielectric Material	Contact Termination	Voltage Rating	Body Material	Mounting Feature	Frequency - Max [Max]	Body Finish	Features	Impedance	Ingress Protection	Insertion Loss	Mounting Type	Connector Type	Shield Termination	Center Contact Material	Housing Color
Radiall USA, Inc. R123659102	-40 °C	105 ░C	Snap-On	Gold	1	Polytetrafluoroethylene (PTFE)	Solder	500 V	Brass	Flange	6000 MHz	Gold	Extended Insulation	50 Ohms	IP68 - Dust Tight Waterproof	0.25 dB	Panel Mount Right Angle Through Hole	Female Socket Jack	Solder	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
