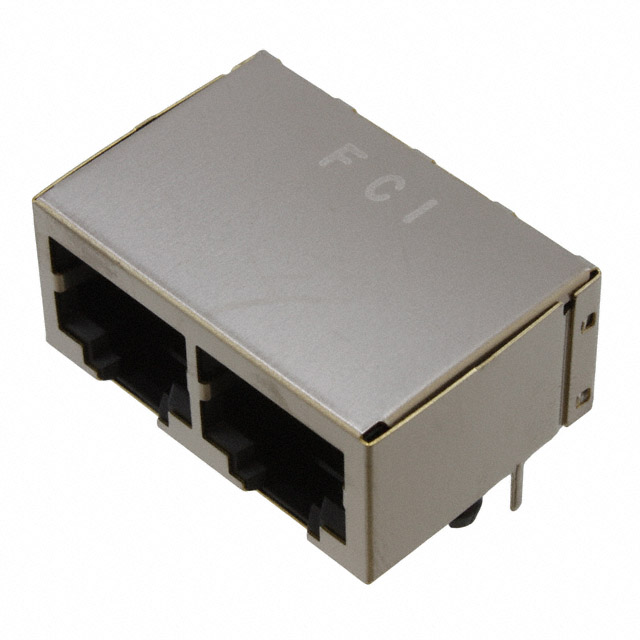

10118061-5005010LF

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	10118061-5005010LF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat3
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Number of Rows	Ratings	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Contact Finish Thickness	Shielding	Number of Positions/Contacts	Housing Material	Mounting Type	LED Color	Orientation	Tab Direction	Number of Ports	Contact Finish
Amphenol ICC (FCI) 10118061-5005010LF	1	Cat3	Copper Alloy	85 °C	-40 °C	Solder	Jack	Flash	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Thermoplastic	Through Hole	Does Not Contain LED	90 °	Down	2	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat3
