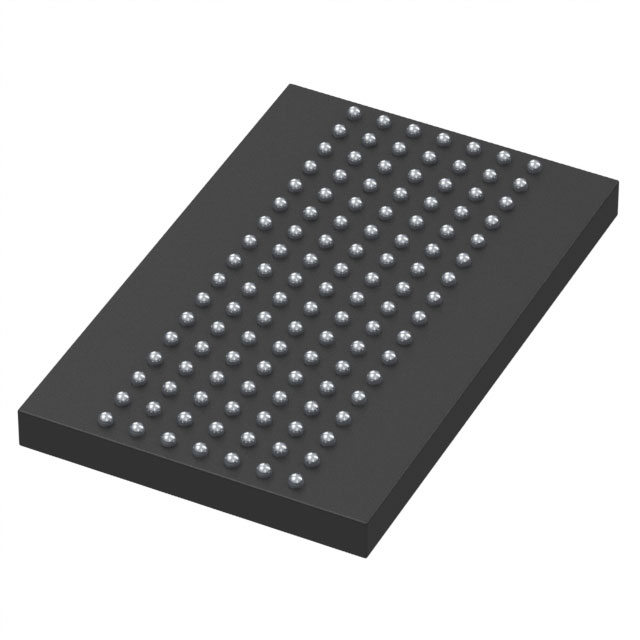

GS81282Z36GB-250I
ActiveGsi Technology
IC SRAM 144MBIT PAR 119FPBGA
Deep-Dive with AI
Search across all available documentation for this part.
GS81282Z36GB-250I
ActiveGsi Technology
IC SRAM 144MBIT PAR 119FPBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GS81282Z36GB-250I | GS81282Z36 Series |
|---|---|---|
| Clock Frequency | 250 MHz | 200 - 250 MHz |
| Memory Format | SRAM | SRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 4M x 36 | 4M x 36 |
| Memory Size | 144 Gbit | 144 Gbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 C | -40 C |
| Package / Case | 119-BGA | 165-LBGA, 119-BGA |
| Supplier Device Package | 119-FPBGA (22x14) | 165-FPBGA (15x13), 119-FPBGA (22x14) |
| Technology | SRAM - Synchronous, ZBT | SRAM - Synchronous, ZBT |
| Voltage - Supply [Max] | 2.7 V, 3.6 V | 2 - 3.6 V |
| Voltage - Supply [Min] | 2.3 V, 3 V | 1.7 - 3 V |
GS81282Z36 Series
SRAM CHIP 144M-BIT 4M X 36 200MHZ 165-PIN BGA
| Part | Memory Size | Memory Organization | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Memory Format | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Clock Frequency | Memory Type | Supplier Device Package | Memory Interface | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gsi Technology GS81282Z36GD-200IV | 144 Gbit | 4M x 36 | 2 V, 2.7 V | 1.7 V, 2.3 V | 165-LBGA | SRAM | Surface Mount | 100 °C | -40 C | 200 MHz | Volatile | 165-FPBGA (15x13) | Parallel | SRAM - Synchronous, ZBT |
Gsi Technology GS81282Z36GD-250I | 144 Gbit | 4M x 36 | 2.7 V, 3.6 V | 2.3 V, 3 V | 165-LBGA | SRAM | Surface Mount | 100 °C | -40 C | 250 MHz | Volatile | 165-FPBGA (15x13) | Parallel | SRAM - Synchronous, ZBT |
Gsi Technology GS81282Z36GB-200IV | 144 Gbit | 4M x 36 | 2 V, 2.7 V | 1.7 V, 2.3 V | 119-BGA | SRAM | Surface Mount | 100 °C | -40 C | 200 MHz | Volatile | 119-FPBGA (22x14) | Parallel | SRAM - Synchronous, ZBT |
Gsi Technology GS81282Z36GB-250I | 144 Gbit | 4M x 36 | 2.7 V, 3.6 V | 2.3 V, 3 V | 119-BGA | SRAM | Surface Mount | 100 °C | -40 C | 250 MHz | Volatile | 119-FPBGA (22x14) | Parallel | SRAM - Synchronous, ZBT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 200.54 | |
Description
General part information
GS81282Z36 Series
SRAM - Synchronous, ZBT Memory IC 144Mbit Parallel 250 MHz 119-FPBGA (22x14)
Documents
Technical documentation and resources
No documents available
