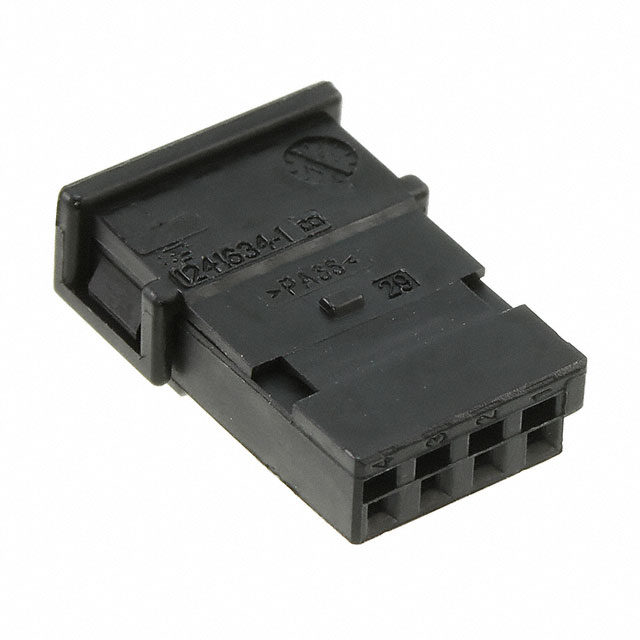

1241634-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241634-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241634-1 | 1241634 Series |
|---|---|---|
| - | - | |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 4 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
1241634 Series
MQS BU-GEH 4P,SW
| Part | Insulation Material | Color | Contact Type | Number of Positions | Pitch [x] | Pitch [x] | Mounting Type | Note | Number of Rows | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241634-2 | |||||||||||||
TE Connectivity AMP Connectors 1241634-3 | Polyamide (PA66), Nylon 6/6 | Black | Female Socket | 4 | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Contacts Not Included | 1 | Receptacle | 85 °C | -40 °C | Crimp |
TE Connectivity AMP Connectors 1241634-1 | Polyamide (PA66), Nylon 6/6 | Black | Female Socket | 4 | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Contacts Not Included | 1 | Receptacle | 85 °C | -40 °C | Crimp |
Description
General part information
1241634 Series
4 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
