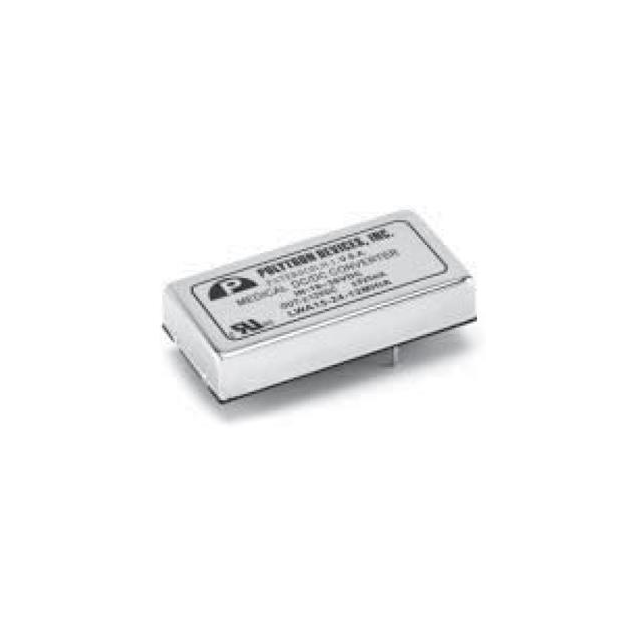

LWA15-24-15

Active

Polytron

DC DC CONVERTER +/-15V 15W

Search across all available documentation for this part.

Active

Polytron

DC DC CONVERTER +/-15V 15W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER +/-15V 15W

Part	Type	Current - Output (Max)	Current - Output (Max)	Efficiency	Voltage - Output 2	Number of Outputs	Applications	Approval Agency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Voltage - Isolation	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]
Polytron LWA15-24-15	Isolated Module	500 mA	500 mA	80 %	-15 V	2	ITE (Commercial)	CE, cURus, UL	15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5-DIP Module	1.5 kV	18 V	15 W	Through Hole	85 °C	-40 °C	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 95.00

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 18V - 36V Input

Technical documentation and resources

No documents available
