8805-0.5-5

Active

3M (TC)

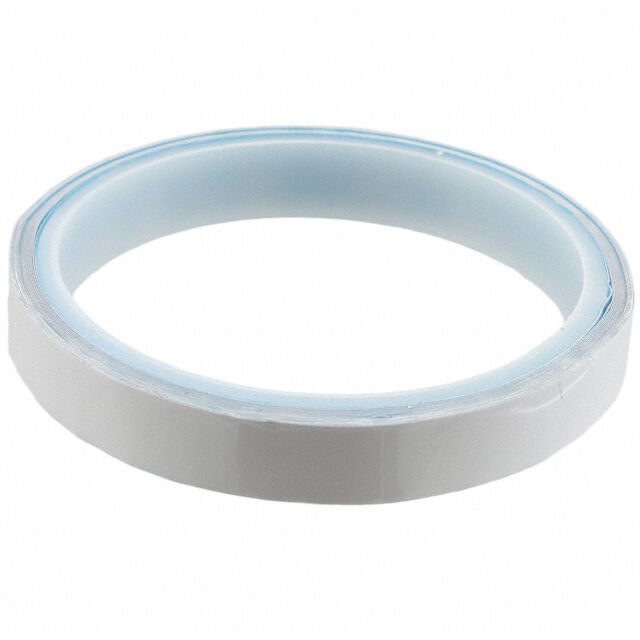

THERM PAD 4.57M X 12.7MM W/ADH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8805-0.5-5

Active

3M (TC)

THERM PAD 4.57M X 12.7MM W/ADH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8805-0.5-5	1/2-5 Series

Adhesive	Adhesive - Both Sides	Conductive, Single Sided, Adhesive - Both Sides, Rubber
Backing, Carrier	Polyester	Polyester, Polyester Film
Color	White	White, Black, Red
Length	-	1.52 - 4.6 m
Length	-	5 - 15 ft
Length	-	5 yd
Material	Acrylic	Nickel-Copper (NI/CU) Fabric, Acrylic
Outline [x]	4.57 m	4.57 m
Outline [y]	12.7 mm	12.7 mm
Shape	Rectangular	Rectangular
Shelf Life	24 Months	18 - 60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	72 °F	72 °F
Storage/Refrigeration Temperature	22 °C	22 °C
Storage/Refrigeration Temperature	-	27 - 80 °F
Storage/Refrigeration Temperature	-	10 - 60 °C
Tape Type	-	Electroplating
Temperature Range	-	311 °F
Temperature Range	-	-40 °F
Thermal Conductivity	0.6 W/m-K	0.6 W/m-K
Thickness	0.0049 in	0.0049 - 0.0148 in
Thickness	0.125 mm	0.125 - 0.375 mm
Thickness - Adhesive	-	2.7 mils
Thickness - Adhesive	-	0.0027 "
Thickness - Adhesive	-	0.069 mm
Thickness - Backing, Carrier	-	0.0009 in
Thickness - Backing, Carrier	-	0.9 mils
Thickness - Backing, Carrier	-	0.023 mm
Thickness - Overall	-	0.002 in
Thickness - Overall	-	0.05 mm
Thickness - Overall	-	0.002 in
Thickness - Overall	-	0.06 mm
Type	Transfer Tape, Roll	Shielding Tape, Transfer Tape, Roll, Hook and Loop
Usage	-	Sealing, Protection, Masking
Width	-	0.5 in
Width	-	12.7 mm
Width	-	0.5 in

1/2-5 Series

RF EMI SHIELDING TAPE 15' X 0.5"

Part	Length	Length	Thickness - Overall [custom]	Thickness - Overall	Material	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Adhesive	Shelf Life Start	Backing, Carrier	Color	Thickness	Thickness	Outline [x]	Outline [y]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shape	Thermal Conductivity	Thickness - Overall [custom]	Thickness - Overall [custom]	Usage	Tape Type	Width	Width	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Length	Temperature Range [Max]	Temperature Range [Min]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]
3M (TC) 1/2-5-CN4490	4.6 m	15 ft	0.002 in	0.05 mm	Nickel-Copper (NI/CU) Fabric	60 Months	27 °C, 80 °F	10 °C	Shielding Tape	Conductive, Single Sided	Date of Manufacture
3M (TC) 8805-0.5-5					Acrylic	24 Months			Transfer Tape, Roll	Adhesive - Both Sides	Date of Manufacture	Polyester	White	0.0049 in	0.125 mm	4.57 m	12.7 mm	72 °F	22 °C	Rectangular	0.6 W/m-K
3M (TC) 8815-0.5-5					Acrylic	24 Months			Transfer Tape, Roll	Adhesive - Both Sides	Date of Manufacture	Polyester	White	0.0148 in	0.375 mm	4.57 m	12.7 mm	72 °F	22 °C	Rectangular	0.6 W/m-K
3M (TC) SJ3000-0.5-5	1.52 m	5 '							Hook and Loop				Black							Rectangular
3M (TC) 8810-0.5-5					Acrylic	24 Months			Transfer Tape, Roll	Adhesive - Both Sides	Date of Manufacture	Polyester	White			4.57 m	12.7 mm	72 °F	22 °C	Rectangular	0.6 W/m-K
3M (TC) 1/2-5-CN3490	4.6 m	15 ft			Nickel-Copper (NI/CU) Fabric	60 Months	27 °C, 80 °F	10 °C	Shielding Tape	Conductive, Single Sided	Date of Manufacture											0.002 in	0.06 mm
3M (TC) 1280-0.5-5	4.6 m	15 ft				18 Months	27 °C, 80 °F	16 °C, 60 °F		Rubber	Date of Manufacture	Polyester Film	Red											Masking, Protection, Sealing	Electroplating	0.5 in	12.7 mm	0.5 in	0.0009 in	0.9 mils	0.023 mm	5 yd	311 °F	-40 °F	2.7 mils	0.0027 "	0.069 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 72.04
		10	$ 55.50
		25	$ 50.36
		50	$ 46.91
		100	$ 43.80

Description

General part information

1/2-5 Series

Thermal Pad White 4.57m x 12.70mm Rectangular Adhesive - Both Sides

Documents

Technical documentation and resources
