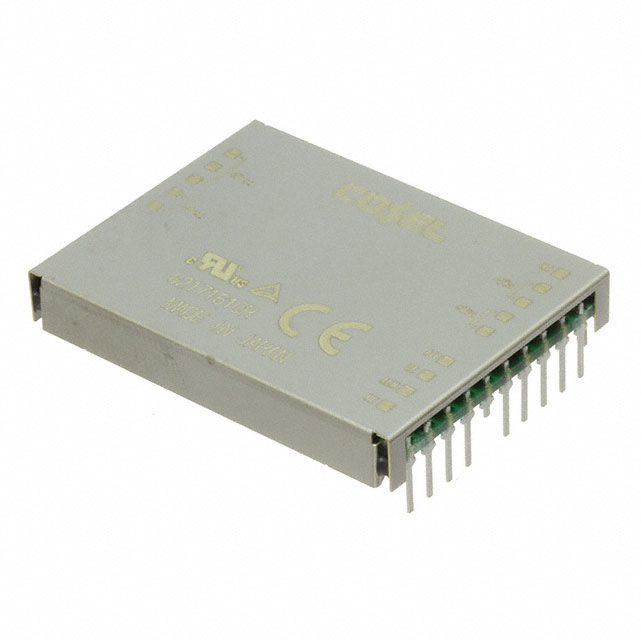

SFCS302415B
Cosel USA, Inc.
DC DC CONVERTER 15V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFCS302415B
Cosel USA, Inc.
DC DC CONVERTER 15V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFCS302415B |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 90 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 17 Leads, 20-SMD Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 1.55 in |
| Size / Dimension [x] | 39.3 mm |
| Size / Dimension [y] | 1.32 in |
| Size / Dimension [y] | 33.5 mm |
| Size / Dimension [z] | 8.8 mm |
| Size / Dimension [z] | 0.35 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 61.81 | |
| 5 | $ 61.33 | |||
Description
General part information
SFCS302415 Series
Isolated Module DC DC Converter 1 Output 15V 2A 18V - 36V Input
