PE42641MLBD-Z

Active

pSemi Corporation

IC RF SWITCH SP4T 3GHZ 16QFN

Search across all available documentation for this part.

Active

pSemi Corporation

IC RF SWITCH SP4T 3GHZ 16QFN

Technical Specifications

Parameters and characteristics for this part

IC RF SWITCH SP4T 3GHZ 16QFN

Part	Test Frequency	Package / Case	Impedance	Insertion Loss	RF Type	Supplier Device Package	IIP3	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Range [Min]	Frequency Range [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Isolation

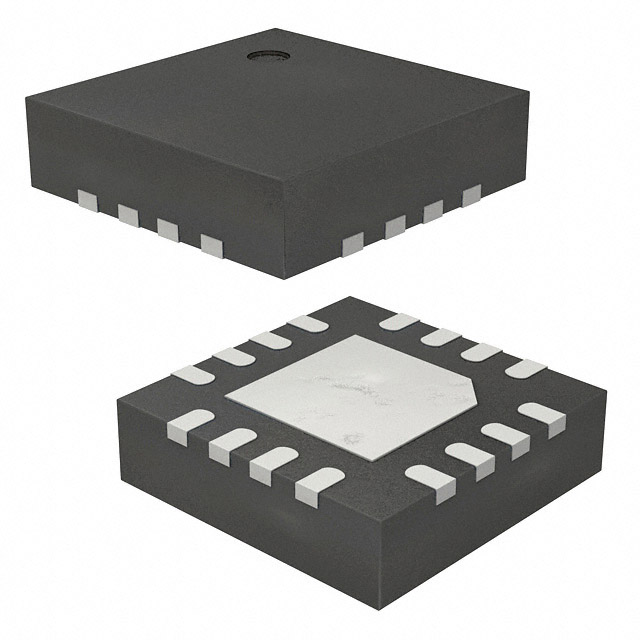

pSemi Corporation PE42641MLBD-Z	1 GHz, 2 GHz	16-WFQFN Exposed Pad	50 Ohms	0.45 dB	CDMA, GSM	16-QFN (3x3)	68 dBm	85 °C	-40 °C	100 MHz	3 GHz	2.65 V	2.85 V	Surface Mount	29 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Switch IC CDMA, GSM SP4T 3 GHz 50Ohm 16-QFN (3x3)
