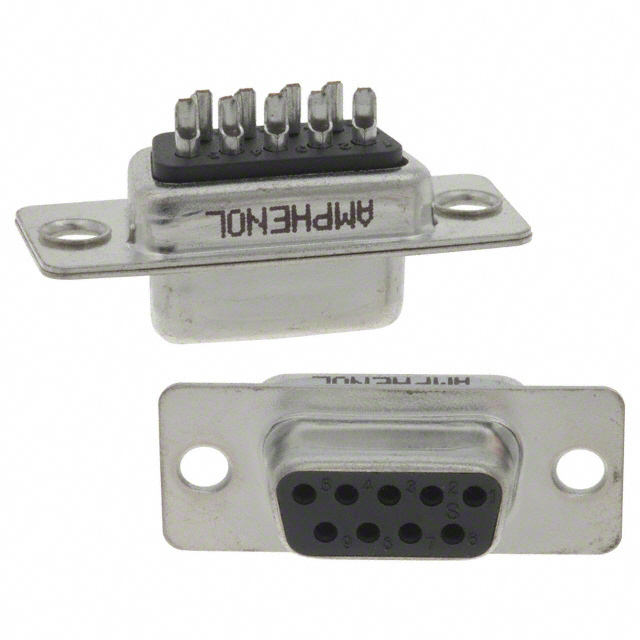

Specification	G17S0900110EU

Color	Black
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Finish	Tin Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Shell Material	Steel
Shell Size	1
Termination	Solder Cup
Voltage Rating	250 V

G17S09 Series

Part	Current Rating	Termination	Shell Size	Connector Layout	Mounting Type	Number of Rows	Connector Style	Finish	Shell Material	Contact Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Material Flammability Rating	Number of Positions	Flange Feature	Voltage Rating	Color	Dielectric Material	Features	Contact Material
Amphenol ICC (Commercial Products) G17S0900110EU	5 A	Solder Cup	1	DE E	Free Hanging (In-Line)	2	D-Sub	Tin Plated	Steel	Signal	Female Sockets Receptacle	0	Flash	Flash	UL94 V-0	9	Housing Shell (Unthreaded)	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)
Amphenol ICC (Commercial Products) G17S0910110EU	5 A	Solder Cup	1	DE E	Free Hanging (In-Line)	2	D-Sub	Tin Plated	Steel	Signal	Male Pins Plug	0	Flash	Flash	UL94 V-0	9	Housing Shell (Unthreaded)	250 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	Grounding Indents	Copper Alloy
