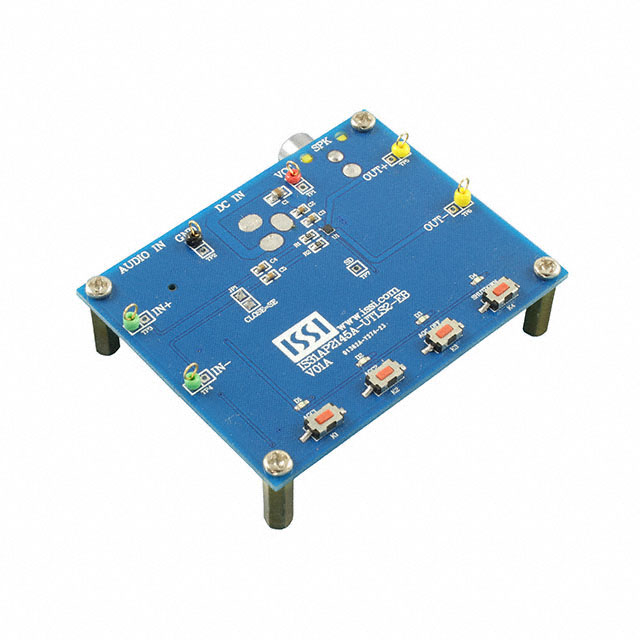

IS31AP2145A-UTLS2-EB

Obsolete

Lumissil Microsystems

EVAL BOARD FOR IS31AP2145A

Search across all available documentation for this part.

Obsolete

Lumissil Microsystems

EVAL BOARD FOR IS31AP2145A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS31AP2145A-UTLS2-EB	IS31AP2145 Series

Contents	Board(s)	Board(s)
Features	-	Short-Circuit, Thermal Protection, Depop
Max Output Power x Channels @ Load	3 W	2.65 - 4 W
Max Output Power x Channels @ Load [custom]	1	1
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	1-Channel (Mono)	1-Channel (Mono)
Package / Case	-	9-UFBGA
Supplier Device Package	-	1.5x1.5, 9-UTQFN
Type	-	Class D
Utilized IC / Part	IS31AP2145A	IS31AP2145A
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.7 V	2.7 V

IC AMP CLASS D MONO 2.65W 9UTQFN

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Supplier Device Package	Package / Case	Mounting Type	Utilized IC / Part	Contents
Lumissil Microsystems IS31AP2145E-UTLS2-TR	Depop, Short-Circuit, Thermal Protection	85 °C	-40 °C	2.65 W, 4 Ohm	1	1-Channel (Mono)	2.7 V	5.5 V	Class D	1.5x1.5, 9-UTQFN	9-UFBGA	Surface Mount
Lumissil Microsystems IS31AP2145A-UTLS2-EB				3 W	1	1-Channel (Mono)	2.7 V	5.5 V					IS31AP2145A	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IS31AP2145A - 1-Channel (Mono) Output Class D Audio Amplifier Evaluation Board
