2M1-DP1-T2-B4-M7QE

Active

Carling Technologies

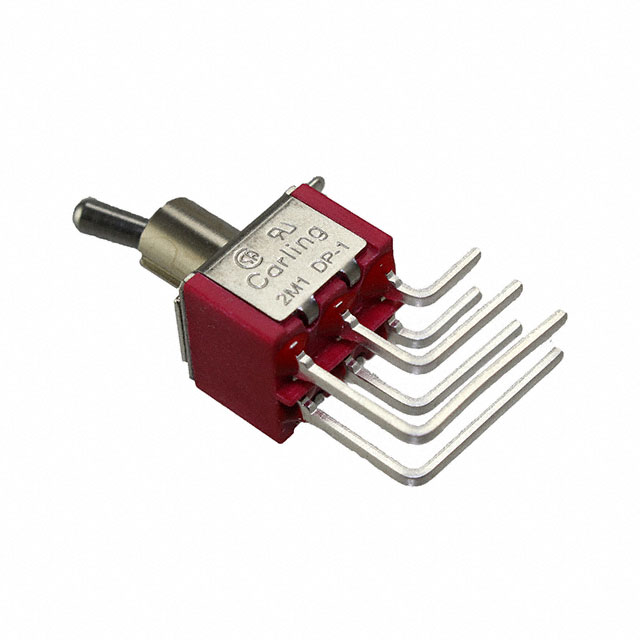

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

2M1-DP1-T2-B4-M7QE

Active

Carling Technologies

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.57
		10	$ 6.82
		25	$ 6.47
		50	$ 6.20
		100	$ 5.99
		250	$ 5.69
		500	$ 5.21
		1000	$ 4.97

Description

General part information

2M1-DP1 Series

Toggle Switch DPDT Through Hole, Right Angle, Vertical

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2M1-DP1-T2-B4-M7QE	2M1-DP1 Series

Actuator Length	-	10.4 mm
Actuator Length [x]	5.4 mm	5.4 - 21.41 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Anti-Rotation, Paddle, Locking Lever, Flatted
Bushing Thread	Unthreaded	Unthreaded, 15/32-32, 1/4-40
Circuit	DPDT	DPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle	Through Hole, Right Angle, Through Hole, Panel Mount, Right Angle, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 - 11.91 mm
Switch Function	On-On	On-On
Termination Style	PC Pin	PC Pin, Solder Lug, Quick Connect - 0.062" (1.5mm), Wire Wrap
Voltage Rating - AC	125 V	20 - 125 V
Voltage Rating - DC	28 V	20 - 28 V

2M1-DP1 Series

28V 125V DPDT STRAIGHT PLUGIN TOGGLE SWITCHES ROHS

Part	Illumination	Ingress Protection	Electrical Life	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Bushing Thread	Features	Actuator Length [x]	Actuator Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Length [z]
Carling Technologies 2M1-DP1-T1-B2-M6QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	Unthreaded	Epoxy Sealed Terminals	10.39 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated	Through Hole, Right Angle
Carling Technologies 2M1-DP1-T8-B0-VS5GE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	15/32-32	Epoxy Sealed Terminals	17.5 mm	Anti-Rotation	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		11.91 mm
Carling Technologies 2M1-DP1-T2-B2-M6QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	Unthreaded	Epoxy Sealed Terminals	5.41 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated	Through Hole, Right Angle
Carling Technologies 2M1-DP1-T8-B0-M2QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	15/32-32	Epoxy Sealed Terminals	17.5 mm	Anti-Rotation	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		11.91 mm
Carling Technologies 2M1-DP1-T1-B1-M1GE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	Solder Lug	1/4-40	Epoxy Sealed Terminals	10.39 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		0.25 in
Carling Technologies 2M1-DP1-T4-B2-M2PE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	PC Pin	Unthreaded	Epoxy Sealed Terminals	16.51 mm	Paddle	DPDT	-30 ░C	85 °C	Brass, Chrome Plated	Through Hole
Carling Technologies 2M1-DP1-TA-B9-M1QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	Solder Lug	1/4-40	Epoxy Sealed Terminals		Locking Lever	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		0.25 in
Carling Technologies 2M1-DP1-T1-B9-M1QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	Solder Lug	1/4-40	Epoxy Sealed Terminals		Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		0.25 in	10.4 mm
Carling Technologies 2M1-DP1-T1-B7-M7RE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	20 V	20 V	0.4 VA	PC Pin	1/4-40	Epoxy Sealed Terminals	10.39 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated	Panel Mount, Right Angle, Vertical	0.25 in
Carling Technologies 2M1-DP1-T1-B3-M3QE	Non-Illuminated	IP67 - Dust Tight, Waterproof	50000 Cycles	On-On	125 V	28 V	5 A	Quick Connect - 0.062" (1.5mm)	1/4-40	Epoxy Sealed Terminals	10.39 mm	Standard Round	DPDT	-30 ░C	85 °C	Brass, Chrome Plated		0.25 in
