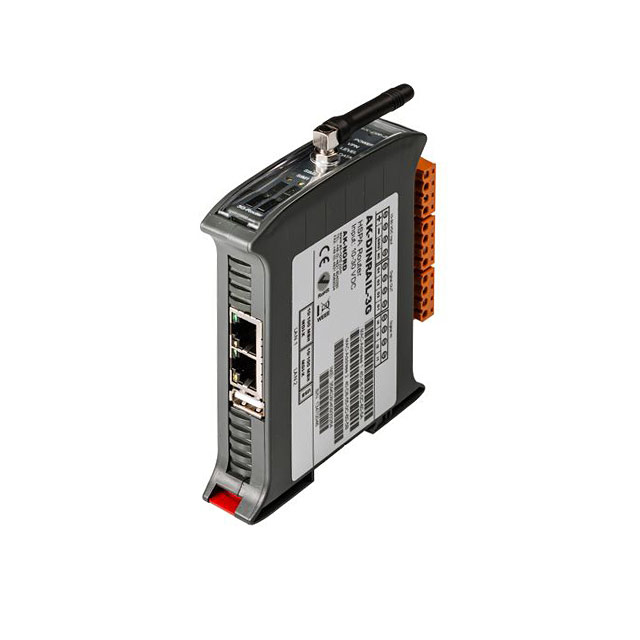

AK-DR-3GR
ObsoleteAK-Nord GmbH
AK-DINRAIL-3G-ROUTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AK-DR-3GR
ObsoleteAK-Nord GmbH
AK-DINRAIL-3G-ROUTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AK-DR-3GR | AK-DR Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Configuration | - | Fixed |
| Connector Type | - | RJ45 |
| Copper Ports | - | 5 |
| Copper Type | - | 10/100 |
| Data Rate (Max) | 7.2 Mbps | 7.2 Mbps |
| Frequency | 1800 MHz, 1900 MHz, 2100 MHz, 850 MHz, 900 MHz | 850 - 2100 MHz |
| Ingress Protection | - | IP30 |
| Interface | - | RS-232, RS-485 |
| Modulation or Protocol | GPRS, GSM | GPRS, GSM |
| Mounting Type | - | DIN Rail |
| Number of Ports | - | 2 - 5 |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 60 °C |
| Type | - | Wireless to Serial, Ethernet to Serial |
| Voltage - Input | - | 32 V |
| Voltage - Input | - | 7 V |
| Voltage - Supply [Max] | 30 VDC | 30 VDC |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
AK-DR Series
WIRELESS TO SERIAL RS-232/RS-485
| Part | Type | Number of Ports | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Configuration | Copper Ports | Ingress Protection | Copper Type | Mounting Type | Connector Type | Applications | Modulation or Protocol | Frequency | Data Rate (Max) | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AK-Nord GmbH AK-DR-XXR | Wireless to Serial | 2 | RS-232, RS-485 | ||||||||||||||||
AK-Nord GmbH AK-DR-XXL | Ethernet to Serial | 2 | RS-232, RS-485 | ||||||||||||||||
AK-Nord GmbH AK-DR-SW5 | 5 | -10 °C | 60 °C | 32 V | 7 V | Fixed | 5 | IP30 | 10/100 | DIN Rail | RJ45 | ||||||||
AK-Nord GmbH AK-DR-3GR | General Purpose | GPRS, GSM | 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz | 7.2 Mbps | 30 VDC | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AK-DR Series
GPRS, GSM Router
