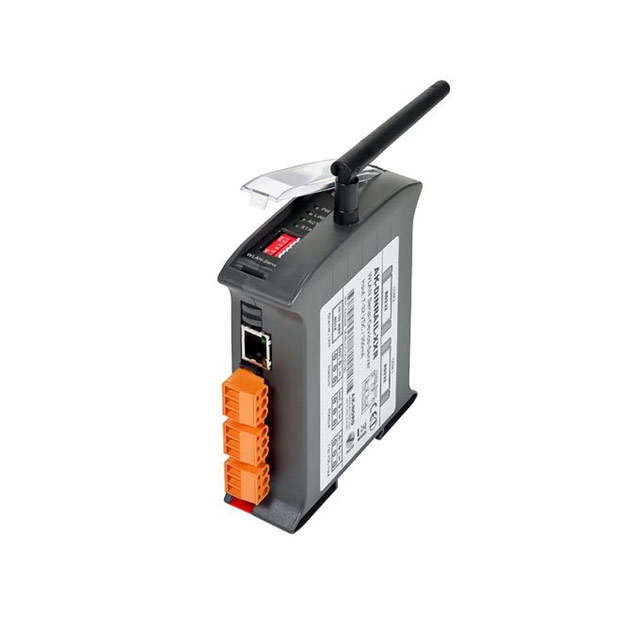

AK-DR-XXR

Active

AK-Nord GmbH

WIRELESS TO SERIAL RS-232/RS-485

Search across all available documentation for this part.

Active

AK-Nord GmbH

WIRELESS TO SERIAL RS-232/RS-485

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AK-DR-XXR	AK-DR Series

Applications	-	General Purpose
Configuration	-	Fixed
Connector Type	-	RJ45
Copper Ports	-	5
Copper Type	-	10/100
Data Rate (Max)	-	7.2 Mbps
Frequency	-	850 - 2100 MHz
Ingress Protection	-	IP30
Interface	RS-232, RS-485	RS-232, RS-485
Modulation or Protocol	-	GPRS, GSM
Mounting Type	-	DIN Rail
Number of Ports	2	2 - 5
Operating Temperature	-	-10 °C
Operating Temperature	-	60 °C
Type	Wireless to Serial	Wireless to Serial, Ethernet to Serial
Voltage - Input	-	32 V
Voltage - Input	-	7 V
Voltage - Supply	-	30 VDC
Voltage - Supply	-	10 VDC

WIRELESS TO SERIAL RS-232/RS-485

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 241.18

General part information

Wireless to Serial Adapter Card RS-232, RS-485
