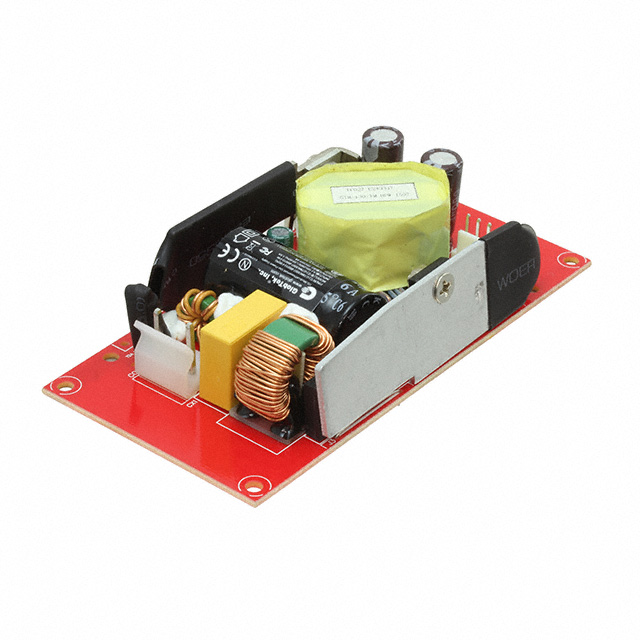

Specification	GTM43007-B6048-FW(R)

Applications	Medical, ITE (Commercial), Household Appliances
Approval Agency	UKRSepro, CB, NEMKO, cETLus, S-Mark, CE, ETL, EAC, CCC, FCC
Current - Output 1	1.25 A
Efficiency	89 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	45 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	60 W
Size / Dimension Height	0.89 in
Size / Dimension Length	4 in
Size / Dimension Width	2 in
Standard Number	62368-1, 60950-1, 60601-1-11, 60335-1, 60601-1-2
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	48 V

GTM43007 Series

Part	Type	Approval Agency	Power (Watts)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Features	Number of Outputs	Mounting Type	Applications	Efficiency	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Output 1	Standard Number	Current - Output 1	Voltage - Isolation
GlobTek, Inc. GTM43007-B6019-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	60 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	4 in	0.89 in	2 in	19 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	3.15 A	4000 Vpk
GlobTek, Inc. GTM43007-B4512-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	45 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	4 in	0.93 in	2 in	12 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	3.75 A	4000 Vpk
GlobTek, Inc. GTM43007-A6048-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	60 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	3 in	0.89 in	2 in	48 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.25 A	4000 Vpk
GlobTek, Inc. GTM43007-B6048-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	60 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	4 in	0.89 in	2 in	48 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.25 A	4000 Vpk
GlobTek, Inc. GTM43007-B3006-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	30 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	4 in	0.93 in	2 in	6 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	5 A	4000 Vpk
GlobTek, Inc. GTM43007-A6012-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKCA UKRSepro	60 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	3 in	0.93 in	2 in	12 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	5 A	4000 Vpk
GlobTek, Inc. GTM43007-A6030-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	60 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	3 in	0.89 in	2 in	30 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	2 A	4000 Vpk
GlobTek, Inc. GTM43007-A6030-F(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro VCCI	60 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	3 in	1.2 in	2 in	30 V		2 A	4000 Vpk
GlobTek, Inc. GTM43007-B6018-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	60 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	4 in	0.89 in	2 in	18 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	3.33 A	4000 Vpk
GlobTek, Inc. GTM43007-A6015-FW(R)	Open Frame	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKRSepro	60 W	90 V	264 V	Universal Input	1	Chassis Mount	Household Appliances ITE (Commercial) Medical	89 %	-10 °C	45 °C	3 in	0.89 in	2 in	15 V	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	4 A	4000 Vpk
