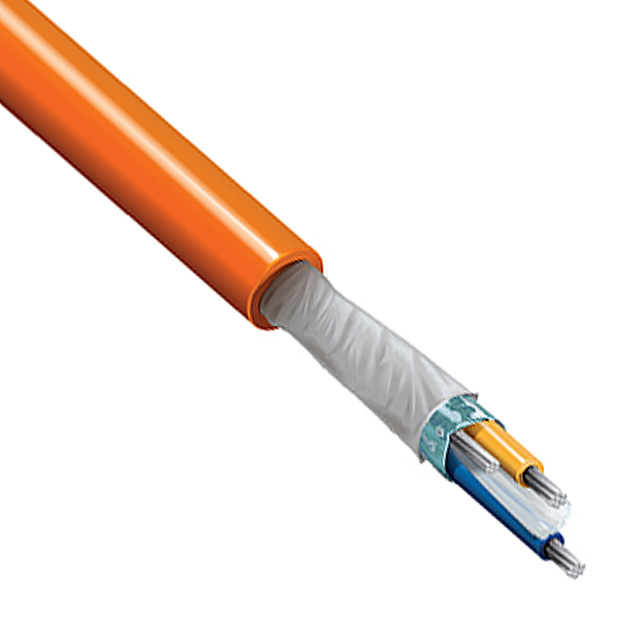

3076F 0061000
ActiveBelden Inc.
CABLE 2CON 18AWG BLUE SHLD
Deep-Dive with AI
Search across all available documentation for this part.
3076F 0061000
ActiveBelden Inc.
CABLE 2CON 18AWG BLUE SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3076F 0061000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Direct Burial, Drain Wire, Oil Resistant, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.28 in |
| Jacket (Insulation) Diameter [diameter] | 7.11 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Blue |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 2.11 | |
Description
General part information
3076F Series
2 (1 Pair) Conductor Multi-Conductor Cable Blue 18 AWG Foil 1000.0' (304.8m)
