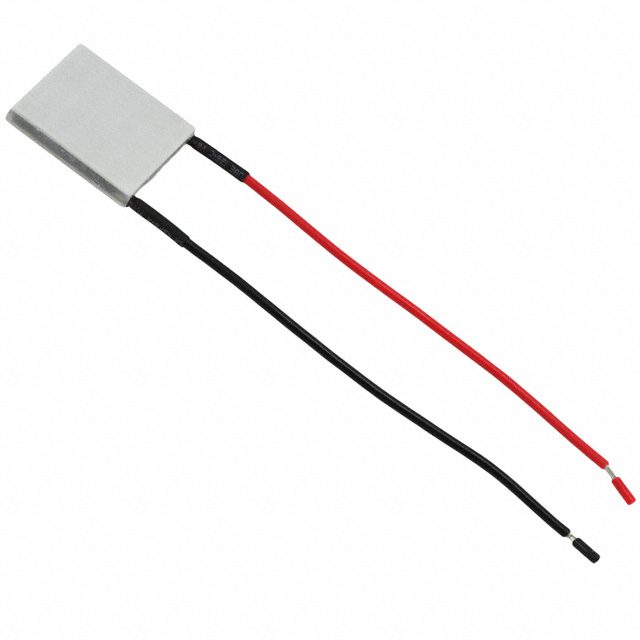

430705-504
ActiveLaird Thermal Systems, Inc.
PELTIER CP14,71,06,L1,EP,W6
Deep-Dive with AI
Search across all available documentation for this part.
430705-504
ActiveLaird Thermal Systems, Inc.
PELTIER CP14,71,06,L1,EP,W6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430705-504 |
|---|---|
| Current - Max [Max] | 6 A |
| Delta Tmax @ Th | 68 °C |
| Features | Lead Wires, Sealed - Epoxy |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 28.7 W |
| Resistance | 1.26 Ohms |
| Size / Dimension [x] | 29.72 mm |
| Size / Dimension [y] | 29.72 mm |
| Voltage - Max [Max] | 8.1 V |
430705 Series
| Part | Qmax @ Th | Operating Temperature | Current - Max [Max] | Features | Delta Tmax @ Th | Size / Dimension [x] | Size / Dimension [y] | Resistance | Height [z] | Number of Stages | Voltage - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Laird Thermal Systems, Inc. | 28.7 W | 80 °C | 6 A | Lead Wires Sealed - Epoxy | 68 °C | 29.72 mm | 29.72 mm | 1.26 Ohms | 3.81 mm | 1 | 8.1 V |
Laird Thermal Systems, Inc. | Lead Wires Non-Sealed | ||||||||||
Laird Thermal Systems, Inc. | 28.7 W | 80 °C | 6 A | Lead Wires Non-Sealed | 68 °C | 29.72 mm | 29.72 mm | 1.26 Ohms | 3.81 mm | 1 | 8.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 27.40 | |
Description
General part information
430705 Series
Peltier Module 28.7W @ 25°C 6 A 80°C
Documents
Technical documentation and resources
