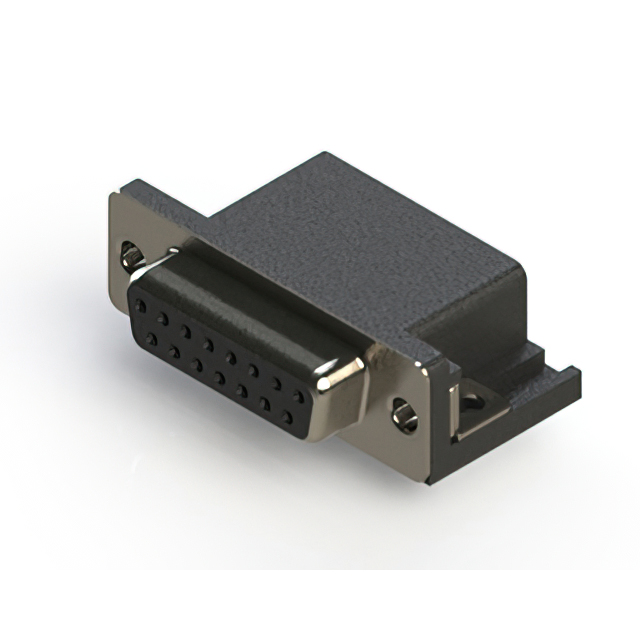

626-015-662-510

Active

EDAC Inc.

626 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

626-015-662-510

Active

EDAC Inc.

626 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	626-015-662-510

Backset Spacing	0.584 in
Backset Spacing	14.84 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

626-015 Series

Part	Contact Type	Contact Finish	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Backset Spacing	Backset Spacing	Features	Contact Material	Color	Shell Size, Connector Layout	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Type	Number of Positions	Material Flammability Rating	Number of Rows	Dielectric Material	Connector Style	Termination	Contact Finish Thickness
EDAC Inc. 626-015-662-042	Signal	Gold	Housing/Shell (4-40)	0.76 Ám	30 Áin	Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	85 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder
EDAC Inc. 626-015-362-533	Signal	Gold	Female Screwlock (4-40) Mating Side	0.38 µm	15 µin	Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	125 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder
EDAC Inc. 626-015-662-543	Signal	Gold	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin	Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	125 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder
EDAC Inc. 626-015-662-510	Signal	Gold	4-40	0.76 Ám	30 Áin	Nickel Plated Steel	0.584 in	14.84 mm	Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	125 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder
EDAC Inc. 626-015-262-033	Signal	Gold	Female Screwlock (4-40) Mating Side			Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	85 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder	Flash
EDAC Inc. 626-015-362-540	Signal	Gold	4-40	0.38 µm	15 µin	Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	125 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder
EDAC Inc. 626-015-362-541	Signal	Gold	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	125 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder
EDAC Inc. 626-015-362-545	Signal	Gold	Housing/Shell (M3)	0.38 µm	15 µin	Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	125 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder
EDAC Inc. 626-015-362-032	Signal	Gold	Housing/Shell (4-40)	0.38 µm	15 µin	Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	85 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder
EDAC Inc. 626-015-362-543	Signal	Gold	Female Screwlock (4-40) Mating Side	0.38 µm	15 µin	Nickel Plated Steel	0.584 in	14.84 mm	Board Lock Mounting Brackets Shielded	Copper Alloy	Black	2	3 A	125 °C	-55 °C	Board Edge Right Angle Through Hole	Receptacle Female Sockets	15	UL94 V-0	2	Polyester Thermoplastic	D-Sub	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 6.91

Description

General part information

626-015 Series

15 Position D-Sub Receptacle, Female Sockets Connector
