132422-10

Active

Amphenol RF

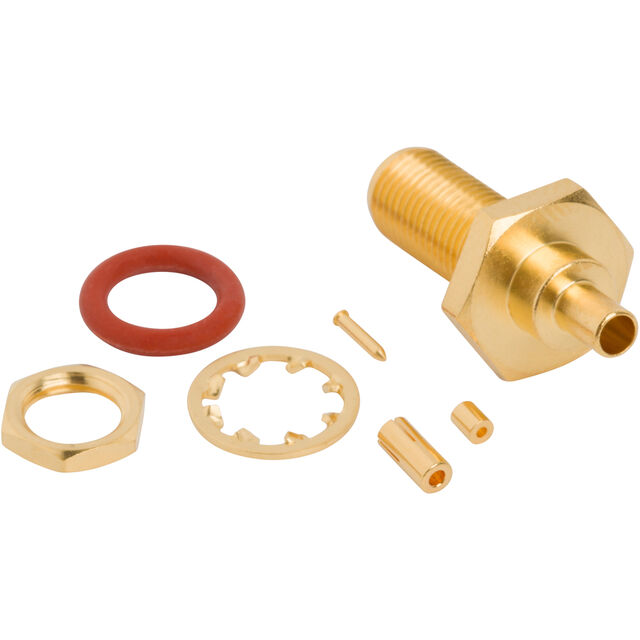

SMA CRIMP JACK FOR 1.13MM, IP-67

Search across all available documentation for this part.

Active

Amphenol RF

SMA CRIMP JACK FOR 1.13MM, IP-67

Technical Specifications

Parameters and characteristics for this part

Specification	132422-10

Body Finish	Gold
Body Material	Brass
Cable Group	1.13mm Coaxial Cable
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Impedance	Connector Style	Contact Termination	Body Material	Center Contact Plating	Shield Termination	Frequency - Max [Max]	Mating Cycles	Ingress Protection	Dielectric Material	Cable Group	Center Contact Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Connector Type	Body Finish	Number of Ports
Amphenol RF 132422-10	50 Ohms	SMA	Solder	Brass	Gold	Crimp	6000 MHz	500	IP67 - Dust Tight Waterproof	Polytetrafluoroethylene (PTFE)	1.13mm Coaxial Cable	Beryllium Copper Brass	Gold	-65 ░C	165 °C	Bulkhead - Front Side Nut	Female Socket Jack	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
