Q-0F03Y000H1.5M

Active

Amphenol Custom Cable

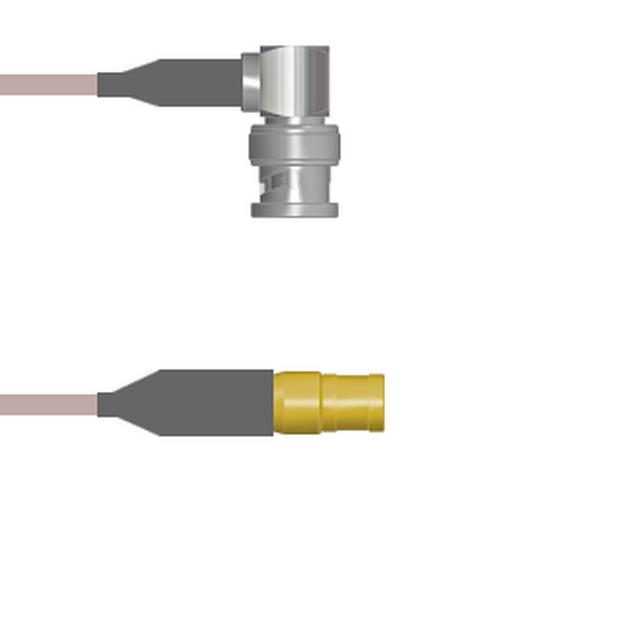

CBL ASSY BNC-SMB PLUG-PLUG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F03Y000H1.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-PLUG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F03Y000H1.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0F03Y0 Series

Part	1st Connector Mounting Type	Cable Type	1st Connector	2nd Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	Style	Color	Features	Overall Impedance	2nd Connector	1st Contact Gender	Length [x]	Length [x]	Length	Length	Length
Amphenol Custom Cable Q-0F03Y000H018i	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0F03Y000H1.5M	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			59.1 in	4.9 ft	1.5 m
Amphenol Custom Cable Q-0F03Y000H084i	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			84 in	7 ft	2.1 m
Amphenol Custom Cable Q-0F03Y000H2.5M	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			98.4 in	8.2 '	2.5 m
Amphenol Custom Cable Q-0F03Y000H0.5M	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			19.69 "		50 cm
Amphenol Custom Cable Q-0F03Y000H036i	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			36 in		91.44 cm
Amphenol Custom Cable Q-0F03Y000H003M	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			118.1 in	9.8 '	3 m
Amphenol Custom Cable Q-0F03Y000H012i	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			12 "		304.8 mm
Amphenol Custom Cable Q-0F03Y000H.75M	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			29.53 "		750 mm
Amphenol Custom Cable Q-0F03Y000H009i	Free Hanging (In-Line)	RG-142	BNC Plug Right Angle	Male	4 GHz	Free Hanging (In-Line)	BNC to SMB	Copper	Shielded	50 Ohms	SMB Plug	Male			9 "		228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 146.61
		25	$ 136.51
		50	$ 126.41
		100	$ 117.75
		250	$ 110.54

Description

General part information

Q-0F03Y0 Series

Cable Assembly Coaxial BNC to SMB RG-142 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
