1350F-1B 2"X72 PLS

Active

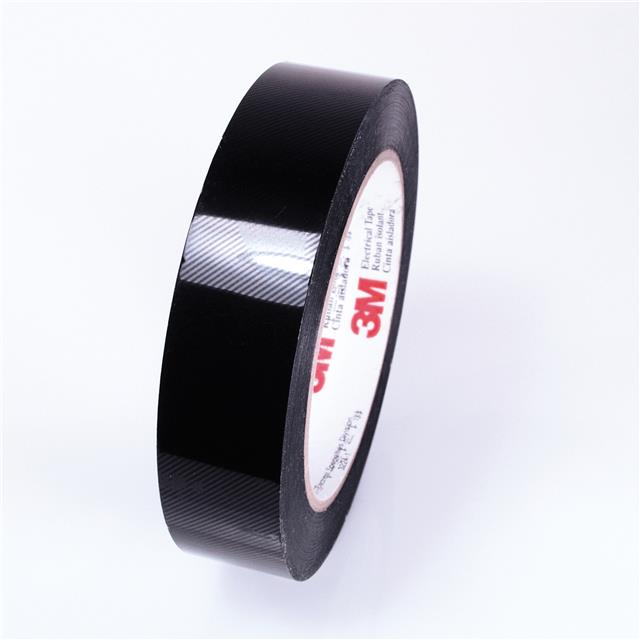

TAPE ELECTRICAL BLACK 2"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

1350F-1B 2"X72 PLS

Active

TAPE ELECTRICAL BLACK 2"X72YDS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 64.17

Description

General part information

1350F Series

Electrical Tape Acrylic Adhesive Black 2.00" (50.80mm) X 216' (65.8m) 72 yds

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1350F-1B 2"X72 PLS	1350F Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyester Film	Polyester Film
Color	Black	White, Yellow, Black
Length	72 yd	60 - 144 yd
Length	216 ft	180 - 432 ft
Length	65.8 m	55 - 132 m
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	Electrical	Electrical, Filament
Temperature Range	130 °C	130 °C
Temperature Range	266 °F	266 °F
Thickness	2.5 mils	2.5 - 88.9 microns
Thickness	0.064 mm	0.064 - 0.165 mm
Thickness	0.0025 "	0.0025 - 0.0065 "
Thickness - Adhesive	1.5 mils	1.5 mils
Thickness - Adhesive	0.0015 in	0.0015 in
Thickness - Adhesive	0.038 mm	0.038 mm
Thickness - Backing, Carrier	1 mils	1 - 2 mils
Thickness - Backing, Carrier	0.025 mm	0.025 - 0.051 mm
Thickness - Backing, Carrier	0.001 "	0.001 - 0.002 "
Usage	-	Holding, Wire Wrapping
Width	-	17.48 - 609.6 mm
Width	-	0.69 - 24 in
Width	-	0.75 in
Width	-	19.05 mm
Width	-	0.75 in
Width	-	0.6875 in
Width [y]	2 "	0.35 - 2 in
Width [y]	50.8 mm	9 - 50.8 mm

1350F Series

TAPE ELECTRICAL WHITE 24"X72YDS

Part	Temperature Range	Temperature Range	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Length	Length	Length	Backing, Carrier	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness	Thickness	Thickness	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Width [x]	Width [x]	Shelf Life	Width	Width	Width	Usage	Width [x]	Width [y]	Width [y]
3M 1350F-2 W 24"X72YD	130 °C	266 °F	0.002 "	0.051 mm	2 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0035 "	88.9 microns	0.089 mm	White	1.5 mils	0.0015 in	0.038 mm	Electrical	609.6 mm	24 in	60 Months
3M 1350F2 W 24"X72YD	130 °C	266 °F	0.002 "	0.051 mm	2 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0035 "	88.9 microns	0.089 mm	White	1.5 mils	0.0015 in	0.038 mm	Electrical	609.6 mm	24 in	60 Months
3M 1350F1 W 24"X72YD	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	White	1.5 mils	0.0015 in	0.038 mm	Electrical	609.6 mm	24 in	60 Months
3M 1350FW1 66MX19M	130 °C	266 °F				Acrylic	60 yds	180 ft	55 m	Polyester Film	Date of Manufacture			0.0065 in	6.5 mils	0.165 mm	White				Filament			60 Months	0.75 in	19.05 mm	0.75 in	Holding
3M 1350F2Y .687"X144Y	130 °C	266 °F	0.002 "	0.051 mm	2 mils	Acrylic	144 yds	432 ft	132 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0035 "	88.9 microns	0.089 mm	Yellow	1.5 mils	0.0015 in	0.038 mm	Electrical	17.48 mm	0.69 in	60 Months					0.6875 in
3M 1350F2Y .687X144YD	130 °C	266 °F	0.002 "	0.051 mm	2 mils	Acrylic	144 yds	432 ft	132 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0035 "	88.9 microns	0.089 mm	Yellow	1.5 mils	0.0015 in	0.038 mm	Electrical	17.48 mm	0.69 in	60 Months					0.6875 in
3M 1350F-1 1"X72YD	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	Black	1.5 mils	0.0015 in	0.038 mm	Electrical	25.4 mm	1 in	60 Months
3M 1350F1Y 66MX9MMM	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	Yellow	1.5 mils	0.0015 in	0.038 mm	Electrical			60 Months						0.35 in	9 mm
3M 1350F-1Y	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic				Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	Yellow	1.5 mils	0.0015 in	0.038 mm	Electrical			60 Months				Wire Wrapping
3M 1350F-1B 2"X72 PLS	130 °C	266 °F	0.001 "	0.025 mm	1 mils	Acrylic	72 yd	216 ft	65.8 m	Polyester Film	Date of Manufacture	27 °C, 80 °F	10 °C	0.0025 "	2.5 mils	0.064 mm	Black	1.5 mils	0.0015 in	0.038 mm	Electrical			60 Months						2 "	50.8 mm
