MWA100018A-12A

Obsolete

Inventus Power

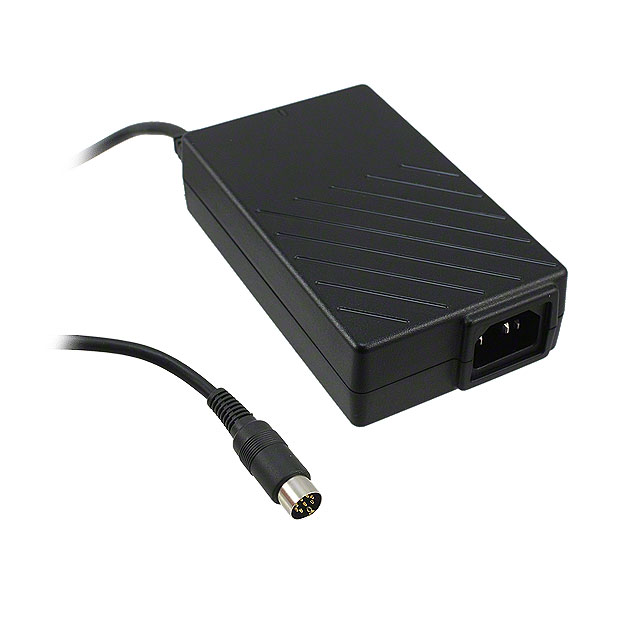

AC/DC DESKTOP ADAPTER 18V 101W

Search across all available documentation for this part.

Obsolete

Inventus Power

AC/DC DESKTOP ADAPTER 18V 101W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 18V 101W

Part	Output Connector	Output Connector	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Form	Power (Watts)	Cord Length	Cord Length	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Region Utilized	Current - Output (Max) [Max]	Efficiency	No Load Power Consumption	Weight	Weight	Voltage - Output
Inventus Power MWA100018A-12A	8 Pin	DIN	Cord	60 °C	0 °C	IEC 320-C14	Desktop (Class I)	101 W	1.83 m	72 in	CB, CE, cTUVus	132 mm	1.34 in	34 mm	78 mm	3.07 in	5.19 in	Medical	International	5.6 A	Level V	500 mW	1.1 lbs	499 g	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

18V 101 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources

No documents available
