SN74LVC257AWBQBRQ1
ActiveTexas Instruments
AUTOMOTIVE QUADRUPLE 2-LINE TO 1-LINE DATA SELECTOR AND MULTIPLEXER WITH TRI-STATE OUTPUTS
Deep-Dive with AI
Search across all available documentation for this part.
SN74LVC257AWBQBRQ1
ActiveTexas Instruments
AUTOMOTIVE QUADRUPLE 2-LINE TO 1-LINE DATA SELECTOR AND MULTIPLEXER WITH TRI-STATE OUTPUTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SN74LVC257AWBQBRQ1 | SN74LVC257A-Q1 Series |
|---|---|---|
| Circuit [custom] | 4 | 4 |
| Circuit [custom] | 2:1 | 2:1 |
| Current - Output High, Low [custom] | 24 mA | 24 mA |
| Current - Output High, Low [custom] | 24 mA | 24 mA |
| Grade | Automotive | Automotive |
| Independent Circuits | 1 | 1 |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank, Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

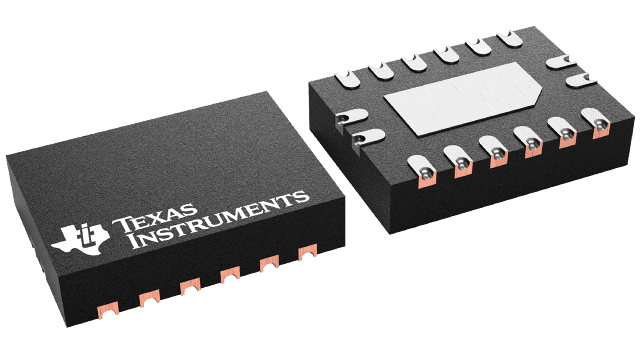

| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad, 16-SOIC, 16-TSSOP |
| Package / Case | - | 0.154 - 3.9 mm Width |
| Package / Case | - | 0.173 " |
| Package / Case | - | 4.4 mm |
| Qualification | AEC-Q100 | AEC-Q100 |
| Supplier Device Package | 16-WQFN | 16-WQFN, 16-SOIC, 16-TSSOP |
| Supplier Device Package [x] | 2.5 | 2.5 |
| Supplier Device Package [y] | 3.5 | 3.5 |
| Type | Data Selector/Multiplexer | Data Selector/Multiplexer, Multiplexer |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2 V | 2 V |
| Voltage Supply Source | Single Supply | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.30 | |
| 6000 | $ 0.28 | |||
| 15000 | $ 0.27 | |||
| 30000 | $ 0.26 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.51 | |
| 100 | $ 0.39 | |||
| 250 | $ 0.29 | |||
| 1000 | $ 0.20 | |||
SN74LVC257A-Q1 Series
Automotive quadruple 2-line to 1-line data selector and multiplexer with tri-state outputs
| Part | Type | Circuit [custom] | Circuit [custom] | Grade | Qualification | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Supply Source | Independent Circuits | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Mounting Type | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] | Package / Case | Package / Case [x] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments SN74LVC257AWBQBRQ1 | Data Selector/Multiplexer | 4 | 2:1 | Automotive | AEC-Q100 | 3.6 V | 2 V | 16-WFQFN Exposed Pad | 125 °C | -40 °C | Single Supply | 1 | 24 mA | 24 mA | Surface Mount, Wettable Flank | 16-WQFN | 2.5 | 3.5 | |||
Texas Instruments SN74LVC257AQDRG4Q1 | Multiplexer | 4 | 2:1 | Automotive | AEC-Q100 | 3.6 V | 2 V | 16-SOIC | 125 °C | -40 °C | Single Supply | 1 | 24 mA | 24 mA | Surface Mount | 16-SOIC | 0.154 in, 3.9 mm Width | ||||
Texas Instruments CLVC257AQPWRG4Q1 | Multiplexer | 4 | 2:1 | Automotive | AEC-Q100 | 3.6 V | 2 V | 16-TSSOP | 125 °C | -40 °C | Single Supply | 1 | 24 mA | 24 mA | Surface Mount | 16-TSSOP | 0.173 " | 4.4 mm |
Description
General part information
SN74LVC257A-Q1 Series
The SN74LVC257A quadruple 2-line to 1-line data selector/multiplexer is designed for 2.7V to 3.6V VCC operation.
The SN74LVC257A quadruple 2-line to 1-line data selector/multiplexer is designed for 2.7V to 3.6V VCC operation.
