2N7002W-HF

Active

Comchip Technology

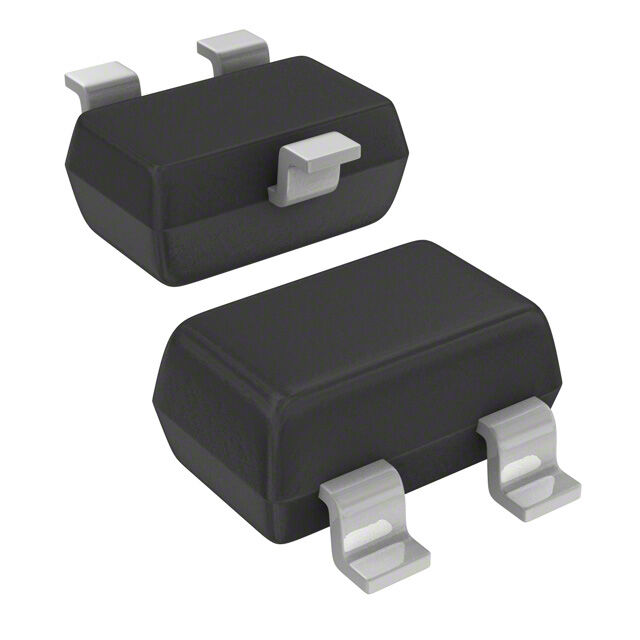

MOSFET N-CH 60V 0.115A SOT323

Search across all available documentation for this part.

Active

Comchip Technology

MOSFET N-CH 60V 0.115A SOT323

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2N7002W-HF	2N7002 Series

Current - Continuous Drain (Id) @ 25°C	115 mA	115 mA
Drain to Source Voltage (Vdss)	60 V	60 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	10 V	10 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	5 V	5 V
FET Type	N-Channel	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	50 pF	50 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	150 °C	150 °C
Operating Temperature	-	-55 °C
Operating Temperature	-	150 °C
Package / Case	SC-70, SOT-323	SC-70, SOT-323
Power Dissipation (Max)	200 mW	200 mW
Rds On (Max) @ Id, Vgs	5 Ohm	5 Ohm
Supplier Device Package	SOT-323	SOT-323
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs (Max)	20 V	20 V
Vgs(th) (Max) @ Id	2.5 V	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

MOSFET N-CH 60V 0.115A SOT323

Part	Package / Case	Mounting Type	Power Dissipation (Max)	Supplier Device Package	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Technology	Operating Temperature	Vgs (Max)	FET Type	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]
Comchip Technology 2N7002W-HF	SC-70, SOT-323	Surface Mount	200 mW	SOT-323	60 V	115 mA	MOSFET (Metal Oxide)	150 °C	20 V	N-Channel	2.5 V	10 V	5 V	50 pF	5 Ohm
Comchip Technology 2N7002W-G	SC-70, SOT-323	Surface Mount	200 mW	SOT-323	60 V	115 mA	MOSFET (Metal Oxide)		20 V	N-Channel	2.5 V	10 V	5 V	50 pF	5 Ohm	-55 °C	150 °C

General part information

N-Channel 60 V 115mA (Ta) 200mW (Ta) Surface Mount SOT-323
