6249-12-0

Active

Pomona Electronics

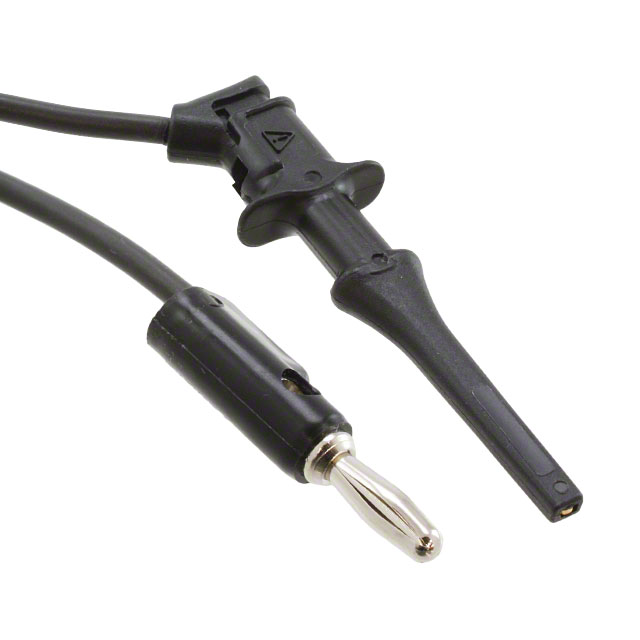

TEST LEAD BANANA TO GRABBER 12"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO GRABBER 12"

Technical Specifications

Parameters and characteristics for this part

Specification	6249-12-0

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Mini Hook
Cable Length	12 in
Cable Length	304.8 mm
Configuration	Banana to Grabber, Hook
Contents	1 Lead, Black
Current Rating (Amps)	5 A
Material - Insulation	Silicone
Ratings	IEC 1010
Stacking Method	Multi-Stacking, Front and Vertical
Type	DMM Test Leads
Voltage - Rated	300 VAC
Wire Gauge	18 AWG

Part	Type	Ratings	1st Connector	Stacking Method	Wire Gauge	Contents [custom]	Contents	Material - Insulation	Configuration	2nd Connector	Voltage - Rated	Cable Length	Cable Length	Current Rating (Amps)
Pomona Electronics 6249-24-2	DMM Test Leads	IEC 1010	Banana Plug Single Stackable	Front and Vertical Multi-Stacking	18 AWG	1	Red	Silicone	Banana to Grabber Hook	Mini Hook	300 VAC	24 "	609.6 mm	5 A
Pomona Electronics 6249-12-0	DMM Test Leads	IEC 1010	Banana Plug Single Stackable	Front and Vertical Multi-Stacking	18 AWG		1 Lead Black	Silicone	Banana to Grabber Hook	Mini Hook	300 VAC	12 in	304.8 mm	5 A
Pomona Electronics 6249-36-2	DMM Test Leads	IEC 1010	Banana Plug Single Stackable	Front and Vertical Multi-Stacking	18 AWG	1	Red	Silicone	Banana to Grabber Hook	Mini Hook	300 VAC	36 in	914.4 mm	5 A
Pomona Electronics 6249-24-0	DMM Test Leads	IEC 1010	Banana Plug Single Stackable	Front and Vertical Multi-Stacking	18 AWG		1 Lead Black	Silicone	Banana to Grabber Hook	Mini Hook	300 VAC	24 "	609.6 mm	5 A
Pomona Electronics 6249-36-0	DMM Test Leads	IEC 1010	Banana Plug Single Stackable	Front and Vertical Multi-Stacking	18 AWG		1 Lead Black	Silicone	Banana to Grabber Hook	Mini Hook	300 VAC	36 in	914.4 mm	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.19

General part information

12.0" (304.80mm) Banana Plug, Single, Stackable To Mini Hook DMM Test Leads 300VAC
