3834/26SO

Active

3M (TC)

CBL RIBN 26COND 0.05 BLACK

Search across all available documentation for this part.

Active

3M (TC)

CBL RIBN 26COND 0.05 BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Conductor Material	Voltage	Jacket Color	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Insulation Resistance	Pitch [x]	Pitch [x]	Features	Shielding	Ribbon Thickness	Ribbon Thickness	Number of Conductors	Wire Gauge	Ribbon Width [x]	Ribbon Width [x]	Length	Length	Ribbon Width	Ribbon Width
3M (TC) 3834/26SO	Copper Silver Coated	300 V	Black	UL Style 2912	Flat Cable Round Jacket	19 Strands	40 AWG	Poly-Vinyl Chloride (PVC)	10 GOhm	0.05 in	1.27 mm	Zippable	Unshielded	0.08 in	2.03 mm	26	28 AWG	1.25 "	31.75 mm	83.82 m	275 ft
3M (TC) 3834/26	Copper Silver Coated	300 V	Black	UL Style 2912	Flat Cable Round Jacket	19 Strands	40 AWG	Poly-Vinyl Chloride (PVC)	10 GOhm	0.05 in	1.27 mm	Zippable	Unshielded	0.08 in	2.03 mm	26	28 AWG	1.25 "	31.75 mm	83.82 m	275 ft
3M (TC) 3834/16SB 275'	Copper Silver Coated	300 V	Black	UL Style 2912	Flat Cable Round Jacket	19 Strands	40 AWG	Poly-Vinyl Chloride (PVC)	10 GOhm	0.05 in	1.27 mm	Zippable	Unshielded	0.08 in	2.03 mm	16	28 AWG			83.82 m	275 ft	0.75 "	19.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1375	$ 6.93

General part information

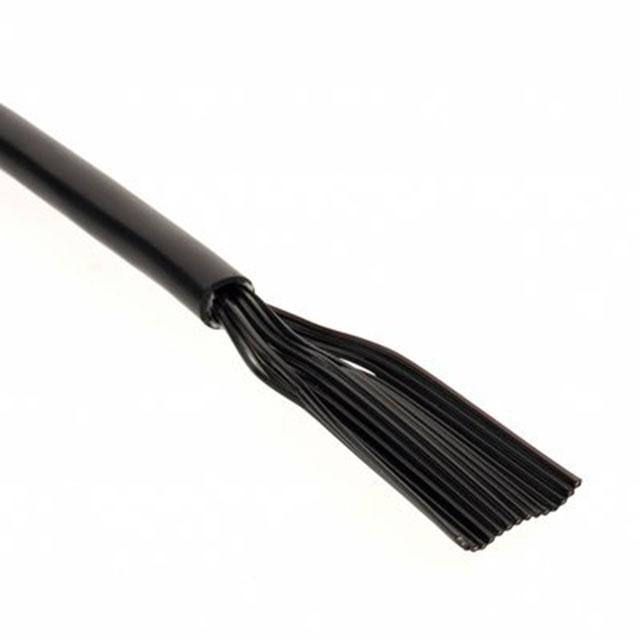

Flat Ribbon Cable Black 26 Conductors 0.050" (1.27mm) Flat Cable, Round Jacket 275.0' (83.82m)
