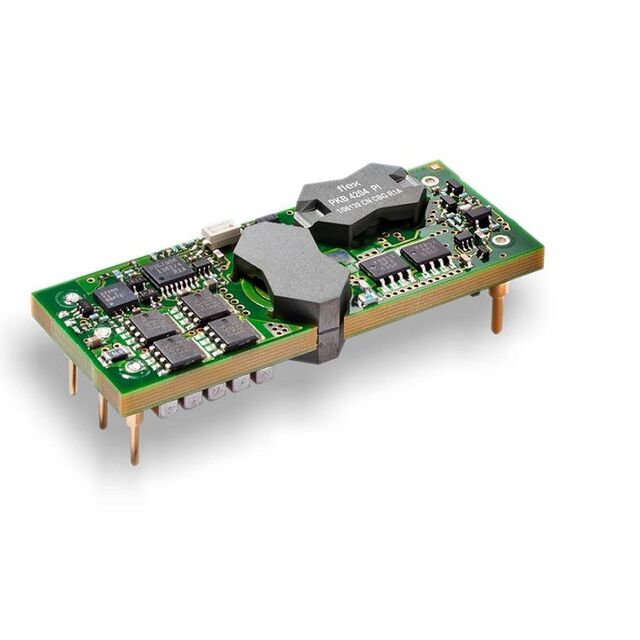

PKB4913SINB

Active

Flex Power Modules

DC DC CONVERTER 12V 90W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 12V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	PKB4913SINB

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	7.5 A
Efficiency	91.2 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Power (Watts)	90 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	22.7 mm
Size / Dimension [y]	0.89 in
Size / Dimension [z]	8.4 mm
Size / Dimension [z]	0.33 in
Standard Number	62368-1
Supplier Device Package	Eighth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Current - Output (Max) [Max]	Standard Number	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Isolation	Type	Voltage - Input (Min) [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Efficiency	Voltage - Input (Max) [Max]	Features	Number of Outputs	Mounting Type	Supplier Device Package	Applications	Control Features
Flex Power Modules PKB4913SINB	7.5 A	62368-1	12 V	-40 °C	120 °C	90 W	2250 VDC	Isolated Module	36 V	Eighth Brick	2.3 in	22.7 mm	58.4 mm	0.89 in	8.4 mm	0.33 in	CB CSA IEC TUV UL	91.2 %	75 V	Adjustable Output Remote On/Off Remote Sense	1	Surface Mount	Eighth Brick	ITE (Commercial)	Active Low Enable
Flex Power Modules PKB4918HCPI	60 A	62368-1	1.5 V	-40 °C	125 °C	90 W	1.5 kV	Isolated Module	36 V	Eighth Brick	2.3 in	22.7 mm	58.4 mm	0.89 in	8.6 mm	0.34 in	CB CSA IEC TUV UL	88.5 %	75 V	Adjustable Output Remote On/Off Remote Sense	1	Through Hole	Eighth Brick	ITE (Commercial)	Active Low Enable
Flex Power Modules PKB4913PINB	7.5 A	62368-1	12 V	-40 °C	120 °C	90 W	2250 VDC	Isolated Module	36 V	Eighth Brick	2.3 in	22.7 mm	58.4 mm	0.89 in	8.1 mm	0.32 "	CB CSA IEC TUV UL	91.2 %	75 V	Adjustable Output Remote On/Off Remote Sense	1	Through Hole	Eighth Brick	ITE (Commercial)	Active Low Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 7.5A 36V - 75V Input
