1167-36

Active

Pomona Electronics

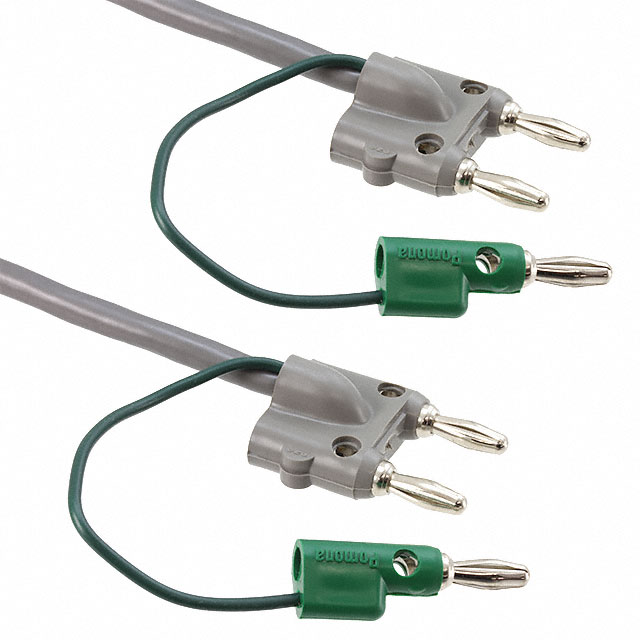

TEST LEAD BANANA TO BANANA 36"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO BANANA 36"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1167-36	1167 Series

1st Connector	Banana Plug, w/Shielding Banana, Stackable, Double	Banana Plug, w/Shielding Banana, Stackable, Double
2nd Connector	Banana Plug, Double, Stackable w/Shielding Banana	Banana Plug, Double, Stackable w/Shielding Banana
Cable Length	36 in	5 - 48 "
Cable Length	914.4 mm	457.2 - 1524 mm
Configuration	Banana to Banana	Banana to Banana
Contents	Gray, Green Lead	Gray, Green Lead
Contents	1 Cable	1 Cable
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical	Multi-Stacking, Front and Vertical
Type	Patch Cord	Patch Cord
Voltage - Rated	1000 VAC	1000 VAC
Voltage - Rated	1 kV	1 kV
Wire Gauge	22, 20	22, 20

TEST LEAD BANANA TO BANANA 24"

Part	Stacking Method	2nd Connector	Configuration	Voltage - Rated	Voltage - Rated	Material - Insulation	Wire Gauge	Contents	Contents	Cable Length	Cable Length	1st Connector	Type
Pomona Electronics 1167-24	Multi-Stacking, Front and Vertical	Banana Plug, Double, Stackable w/Shielding Banana	Banana to Banana	1000 VAC	1 kV	Poly-Vinyl Chloride (PVC)	20, 22	Gray, Green Lead	1 Cable	24 "	609.6 mm	Banana Plug, Double, Stackable, w/Shielding Banana	Patch Cord
Pomona Electronics 1167-60	Multi-Stacking, Front and Vertical	Banana Plug, Double, Stackable w/Shielding Banana	Banana to Banana	1000 VAC	1 kV	Poly-Vinyl Chloride (PVC)	20, 22	Gray, Green Lead	1 Cable	5 ft	1524 mm	Banana Plug, Double, Stackable, w/Shielding Banana	Patch Cord
Pomona Electronics 1167-18	Multi-Stacking, Front and Vertical	Banana Plug, Double, Stackable w/Shielding Banana	Banana to Banana	1000 VAC	1 kV	Poly-Vinyl Chloride (PVC)	20, 22	Gray, Green Lead	1 Cable	18 in	457.2 mm	Banana Plug, Double, Stackable, w/Shielding Banana	Patch Cord
Pomona Electronics 1167-48	Multi-Stacking, Front and Vertical	Banana Plug, Double, Stackable w/Shielding Banana	Banana to Banana	1000 VAC	1 kV	Poly-Vinyl Chloride (PVC)	20, 22	Gray, Green Lead	1 Cable	48 in	1219.2 mm	Banana Plug, Double, Stackable, w/Shielding Banana	Patch Cord
Pomona Electronics 1167-36	Multi-Stacking, Front and Vertical	Banana Plug, Double, Stackable w/Shielding Banana	Banana to Banana	1000 VAC	1 kV	Poly-Vinyl Chloride (PVC)	20, 22	Gray, Green Lead	1 Cable	36 in	914.4 mm	Banana Plug, Double, Stackable, w/Shielding Banana	Patch Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36.0" (914.40mm) Banana Plug, Double, Stackable w/Shielding Banana To Banana Plug, Double, Stackable w/Shielding Banana Patch Cord 1000VAC (1kV)
