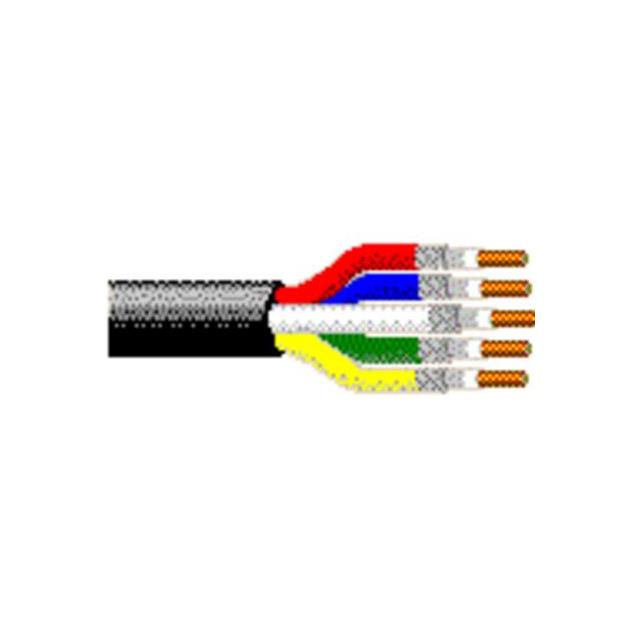

7798A B59500

Active

Belden Inc.

10 #20 PE/GIFHDPE SH FRPVC PVC

Search across all available documentation for this part.

Active

Belden Inc.

10 #20 PE/GIFHDPE SH FRPVC PVC

Technical Specifications

Parameters and characteristics for this part

Specification	7798A B59500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	1.166 in
Jacket (Insulation) Diameter [diameter]	29.62 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10 (Coax)
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Ratings	UL Style CMR
Shield Coverage	95 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Video
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Material	Ratings	Shield Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Material	Shield Material	Voltage	Length [x]	Length [x]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Shield Coverage	Cable Type	Conductor Strand	Usage
Belden Inc. 7798A B59500	Poly-Vinyl Chloride (PVC) Riser	UL Style CMR	Braid Foil	Polyethylene (PE)	1.166 in	29.62 mm	10 (Coax)	Copper Bare	Aluminum Polyester Copper Tinned	300 V	500 '	152.4 m	Black	-35 °C	75 ░C	20 AWG	95 % 100 %	Multi-Conductor	Solid	Video

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 18.76

General part information

10 (Coax) Conductor Multi-Conductor Cable Black 20 AWG Foil, Braid 500.0' (152.4m)
