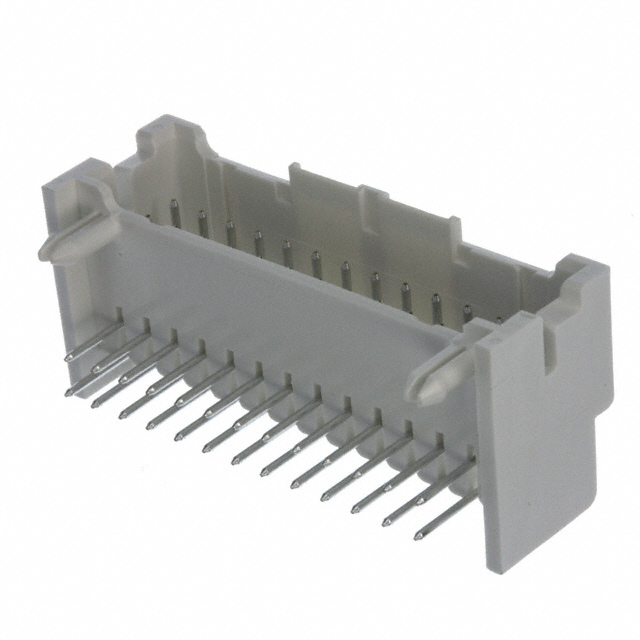

S26B-XADSS-N

Active

JST Sales America Inc.

CONN HEADER R/A 26POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 26POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S26B-XADSS-N

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height [z]	12.1 mm
Insulation Height [z]	0.476 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	0.098 in
Row Spacing - Mating	2.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Insulation Material	Contact Type	Voltage Rating	Number of Positions	Shrouding	Insulation Height [z]	Insulation Height [z]	Insulation Color	Termination	Contact Material	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Style	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Current Rating (Amps)	Number of Positions Loaded	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Mounting Type
JST Sales America Inc. S26B-XADSS-N	Polyamide (PA66) Nylon 6/6 Glass Filled	Male Pin	250 VDC	26	Shrouded - 4 Wall	12.1 mm	0.476 in	Natural	Solder	Copper Alloy	Tin	0.134 in	3.4 mm	2	Circular	-25 °C	85 °C	Board to Cable/Wire	2.5 mm	0.098 in	UL94 V-0	3 A	All	Locking Ramp	0.098 in	2.5 mm	Header	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 26 position 0.098" (2.50mm)
