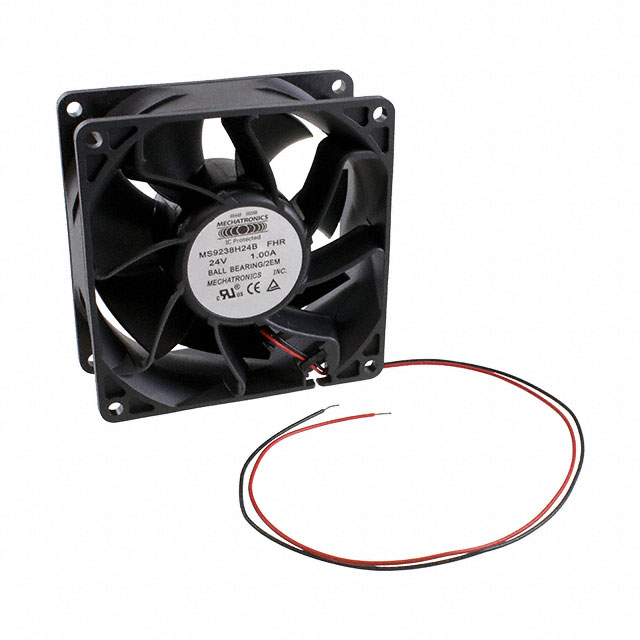

MS9238H24B-FHR-2EM

Active

Mechatronics Bearing Group

FAN AXIAL 92X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs

MS9238H24B-FHR-2EM

Active

Mechatronics Bearing Group

FAN AXIAL 92X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS9238H24B-FHR-2EM

Air Flow	4.67 m³/min
Air Flow	166.7 CFM
Bearing Type	Ball
Current Rating (Amps)	1.1 A
Fan Type	Tubeaxial
Features	Auto Restart
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Noise	65 dB
RPM	8000 RPM
Static Pressure	1.45 in H2O
Static Pressure	361.2 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.446 lb
Weight	202.3 g
Width [y]	38 mm

MS9238 Series

Part	Air Flow	Air Flow	Termination	Voltage - Rated	Width [y]	RPM	Features	Noise	Material - Frame	Bearing Type	Fan Type	Current Rating (Amps)	Static Pressure	Static Pressure	Material - Blade	Weight	Weight	Ingress Protection	Voltage - Rated [custom]
Mechatronics Bearing Group MS9238M24B1+6-FHR	3.51 m³/min	125.3 CFM	4 Wire Leads	24 VDC	38 mm	6000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	56 dB	Plastic	Ball	Tubeaxial	480 mA	0.87 in H2O	216.7 Pa	Plastic	0.446 lb	202.3 g
Mechatronics Bearing Group MS9238M12B1+6-FHR-2EM	3.51 m³/min	125.3 CFM	4 Wire Leads	12 VDC	38 mm	6000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	56 dB	Plastic	Ball	Tubeaxial	1.01 A	0.87 in H2O	216.7 Pa	Plastic	0.446 lb	202.3 g	IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS9238H24B-FHR-2EM	4.67 m³/min	166.7 CFM	2 Wire Leads	24 VDC	38 mm	8000 RPM	Auto Restart	65 dB	Plastic	Ball	Tubeaxial	1.1 A	1.45 in H2O	361.2 Pa	Plastic	0.446 lb	202.3 g	IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS9238L24B1+6-FHR	2.26 m³/min	80.7 CFM	4 Wire Leads	24 VDC	38 mm	4000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	37 dB	Plastic	Ball	Tubeaxial		0.4 in H2O	99.6 Pa	Plastic	0.446 lb	202.3 g
Mechatronics Bearing Group MS9238L24B-FHR-2EM	2.26 m³/min	80.7 CFM	2 Wire Leads	24 VDC	38 mm	4000 RPM	Auto Restart	37 dB	Plastic	Ball	Tubeaxial		0.4 in H2O	99.6 Pa	Plastic	0.446 lb	202.3 g	IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS9238L24B-FHR	2.26 m³/min	80.7 CFM	2 Wire Leads	24 VDC	38 mm	4000 RPM	Auto Restart	37 dB	Plastic	Ball	Tubeaxial		0.4 in H2O	99.6 Pa	Plastic	0.446 lb	202.3 g
Mechatronics Bearing Group MS9238L48B-FHR-2EM	2.26 m³/min	80.7 CFM	2 Wire Leads		38 mm	4000 RPM	Auto Restart	37 dB	Plastic	Ball	Tubeaxial		0.4 in H2O	99.6 Pa	Plastic	0.446 lb	202.3 g	IP68 - Dust Tight Waterproof	48 VDC
Mechatronics Bearing Group MS9238H48B1+6-FHR-2EM	4.67 m³/min	166.7 CFM	4 Wire Leads		38 mm	8000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	65 dB	Plastic	Ball	Tubeaxial	0.47 A	1.45 in H2O	361.2 Pa	Plastic	0.446 lb	202.3 g	IP68 - Dust Tight Waterproof	48 VDC
Mechatronics Bearing Group MS9238H24B1+6-FHR-2EM	4.67 m³/min	166.7 CFM	4 Wire Leads	24 VDC	38 mm	8000 RPM	Auto Restart PWM Control Speed Sensor (Tach)	65 dB	Plastic	Ball	Tubeaxial	1.1 A	1.45 in H2O	361.2 Pa	Plastic	0.446 lb	202.3 g	IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS9238H48B-FHR-2EM	4.67 m³/min	166.7 CFM	2 Wire Leads		38 mm	8000 RPM	Auto Restart	65 dB	Plastic	Ball	Tubeaxial	0.47 A	1.45 in H2O	361.2 Pa	Plastic	0.446 lb	202.3 g	IP68 - Dust Tight Waterproof	48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.81
		10	$ 22.12
		25	$ 21.13
		50	$ 20.41
		100	$ 19.72
		250	$ 18.84
		500	$ 18.19

Description

General part information

MS9238 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 166.7 CFM (4.67m³/min) 2 Wire Leads
