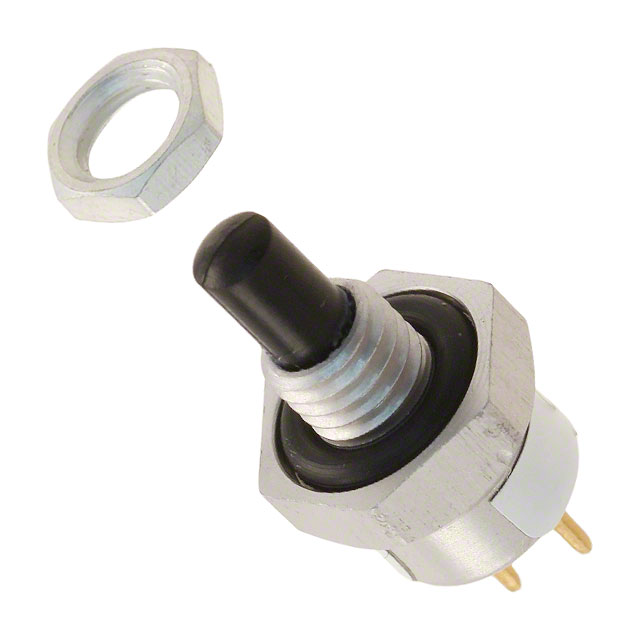

39-138 BLK

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.5A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO 0.5A 115V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear

Technical documentation and resources

Specification	39-138 BLK	39-138 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Plunger	Round, Plunger
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Black	Red, Black
Current Rating (Amps)	500 mA	500 mA
Electrical Life	250000 Cycles	250000 Cycles
Features	Sealed - Fully	Sealed - Fully
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	4.37 mm	4.37 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	PC Pin	PC Pin
Type	Standard	Standard
Voltage Rating - AC	115 V	115 V

Part	Actuator Type	Mounting Type	Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Actuator Marking	Features	Circuit	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Switch Function
Grayhill Inc. 39-138 RED	Round, Plunger	Panel Mount, Rear	Standard	4.37 mm	85 °C	-40 °C	250000 Cycles	No Marking	Sealed - Fully	SPST-NO	115 V	Red	500 mA	PC Pin	Off-Mom
Grayhill Inc. 39-138 BLK	Round, Plunger	Panel Mount, Rear	Standard	4.37 mm	85 °C	-40 °C	250000 Cycles	No Marking	Sealed - Fully	SPST-NO	115 V	Black	500 mA	PC Pin	Off-Mom
