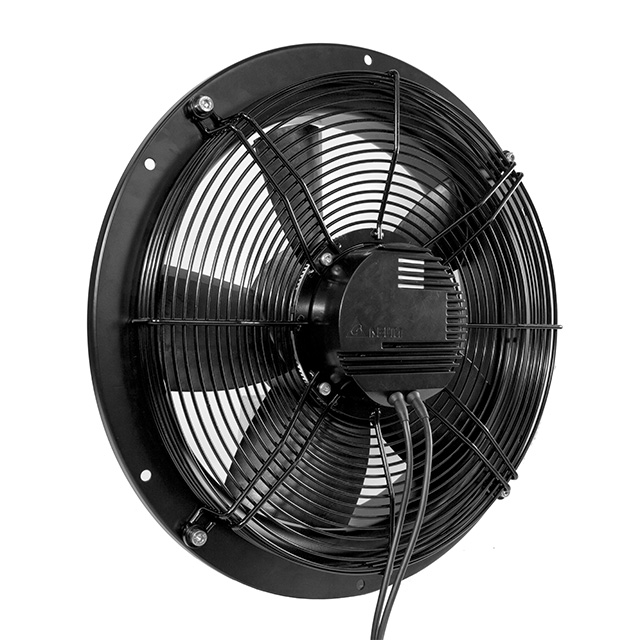

GTW040FUC15RE

Active

Delta Electronics

FAN AXIAL 404X202MM 230VAC

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 404X202MM 230VAC

Technical Specifications

Parameters and characteristics for this part

Specification	GTW040FUC15RE

Air Flow	3147 CFM
Air Flow	88.12 m³/min
Approval Agency	cUL, TUV
Bearing Type	Ball
Current Rating (Amps)	3 A
Fan Type	Tubeaxial
Features	PWM Control, Thermal Overload Protector (TOP)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polypropylene (PP)
Material - Frame	Aluminum
Noise	72 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	330 W
RPM	1650 RPM
Size / Dimension [diameter]	528 mm
Static Pressure	0.71 in H2O
Static Pressure	176.9 Pa
Voltage - Rated	230 VAC
Voltage Range [Max]	277 VAC
Voltage Range [Min]	200 VAC
Weight	9.5 kg
Weight	21 lbs
Width [y]	154 mm

Part	Width [y]	Approval Agency	Static Pressure	Static Pressure	Ingress Protection	Bearing Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	RPM	Current Rating (Amps)	Features	Material - Blade	Weight	Weight	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Lifetime @ Temp.	Noise	Voltage - Rated	Size / Dimension [diameter]
Delta Electronics GTW040FUC15RE	154 mm	cUL TUV	0.71 in H2O	176.9 Pa	IP54 - Dust Protected Water Resistant	Ball	330 W	-25 °C	60 °C	Tubeaxial	1650 RPM	3 A	PWM Control Thermal Overload Protector (TOP)	Polypropylene (PP)	9.5 kg	21 lbs	Aluminum	277 VAC	200 VAC	3147 CFM	88.12 m³/min	60000 Hrs	72 dB(A)	230 VAC	528 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 553.87
