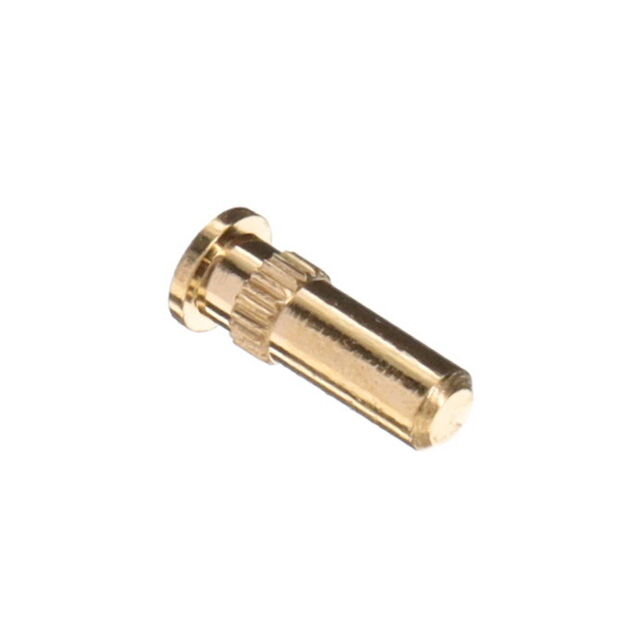

0293-0-15-15-16-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 PRESSFIT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.034 PRESSFIT

Technical Specifications

Parameters and characteristics for this part

Specification	0293-0-15-15-16-27-10-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.086 in
Flange Diameter [diameter]	2.18 mm
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.17 in
Socket Depth	4.32 mm
Tail Type	No Tail
Termination	Press-Fit

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Socket Depth	Socket Depth	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]
Mill-Max Manufacturing Corp. 0293-0-15-15-16-27-10-0	1.7 mm	0.067 "	No Tail	Gold	0.086 in	2.18 mm	-55 °C	125 °C	Beryllium Copper	0.76 Ám	30 Áin	0.051 in	1.3 mm	0.64 mm	0.025 in	0.17 in	4.32 mm	Press-Fit	0.86 mm	0.034 "	0.56 mm	0.022 "
Mill-Max Manufacturing Corp. 0293-0-15-80-16-80-10-0	1.7 mm	0.067 "	No Tail	Tin	0.086 in	2.18 mm	-55 °C	125 °C	Beryllium Copper	5.08 Ám	200 Áin	0.051 in	1.3 mm	0.64 mm	0.025 in	0.17 in	4.32 mm	Press-Fit	0.86 mm	0.034 "	0.56 mm	0.022 "
Mill-Max Manufacturing Corp. 0293-0-15-15-16-14-10-0	1.7 mm	0.067 "	No Tail	Gold	0.086 in	2.18 mm	-55 °C	125 °C	Beryllium Copper	0.25 Ám	10 Áin	0.051 in	1.3 mm	0.64 mm	0.025 in	0.17 in	4.32 mm	Press-Fit	0.86 mm	0.034 "	0.56 mm	0.022 "
Mill-Max Manufacturing Corp. 0293-0-15-80-16-27-10-0	1.7 mm	0.067 "	No Tail	Gold	0.086 in	2.18 mm	-55 °C	125 °C	Beryllium Copper	0.76 Ám	30 Áin	0.051 in	1.3 mm	0.64 mm	0.025 in	0.17 in	4.32 mm	Press-Fit	0.86 mm	0.034 "	0.56 mm	0.022 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Press-Fit
