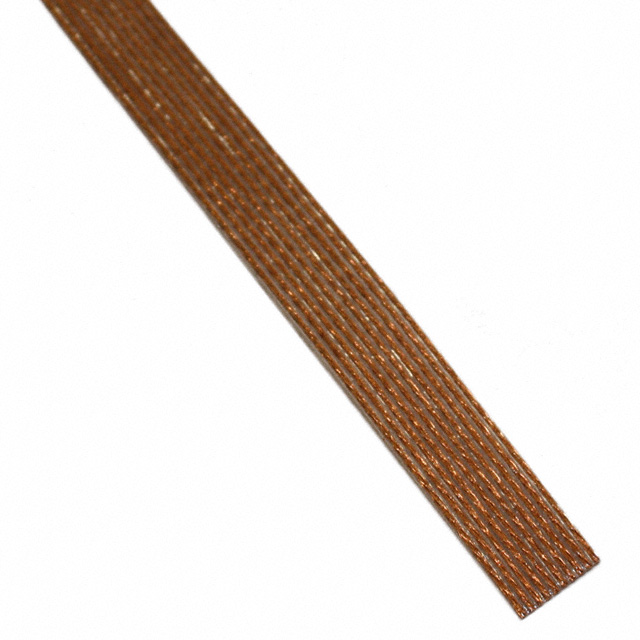

666K101-10

Unknown

Cicoil

CBL RIBN 10COND 0.039 CLEAR 250'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

666K101-10

Unknown

Cicoil

CBL RIBN 10COND 0.039 CLEAR 250'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	666K101-10	666K101 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Bare	Copper, Bare
Current Rating (Amps)	5 A	5 A
Insulation Resistance	200 MOhm	200 MOhm
Jacket (Insulation) Material	Flexx-Sil™	Flexx-Sil™
Jacket Color	Clear	Clear
Length	15.24 m, 152.4 m, 76.2 m, 7.62 m	7.62 - 304.8 m
Length	50 ft, 6000 in, 3000 ", 25 ft	25 - 6000 ft
Length [x]	100 ft	100 ft
Length [x]	30.48 m	30.48 m
Number of Conductors	10	10 - 50
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Ratings	CE, UL E324413	CE, UL E324413
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	-	0.63 - 1.339 in
Ribbon Width	-	16 - 34 mm
Ribbon Width	-	1.181 - 40 mm
Ribbon Width	-	0.787 - 1.575 in
Ribbon Width	-	30 mm
Ribbon Width	-	1.969 in
Ribbon Width	-	50.01 mm
Ribbon Width [custom]	10 mm	10 - 43.99 mm
Ribbon Width [custom]	0.394 in	0.394 - 1.732 in
Shielding	Unshielded	Unshielded
Voltage	450 V	450 V
Wire Gauge	28 AWG	28 AWG

666K101 Series

CBL RIBN 16COND 0.039 CLEAR 50'

Part	Length	Length	Ratings	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length [x]	Length [x]	Jacket Color	Ribbon Width [y]	Ribbon Width [y]	Number of Conductors	Insulation Resistance	Pitch [x]	Pitch [x]	Voltage	Shielding	Cable Type	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Current Rating (Amps)	Ribbon Width	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [custom]	Ribbon Width [custom]
Cicoil 666K101-16	50 ft, 1000 ft, 6000 in	15.24 m, 152.4 m, 304.8 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™	100 ft	30.48 m	Clear	0.63 in	16 mm	16	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A
Cicoil 666K101-40-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			40	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A	40 mm	1.575 in
Cicoil 666K101-34-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear	1.339 "	34 mm	34	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A
Cicoil 666K101-30-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			30	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A	1.181 in		30 mm
Cicoil 666K101-50-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			50	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A				1.969 in	50.01 mm
Cicoil 666K101-20	50 ft, 1000 ft	15.24 m, 304.8 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			20	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A	20 mm	0.787 in
Cicoil 666K101-44-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			44	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A						43.99 mm	1.732 in
Cicoil 666K101-10	25 ft, 50 ft, 3000 ", 6000 in	7.62 m, 15.24 m, 76.2 m, 152.4 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™	100 ft	30.48 m	Clear			10	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A						10 mm	0.394 in
Cicoil 666K101-26	50 ft, 6000 in	15.24 m, 152.4 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™	100 ft	30.48 m	Clear			26	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A	26.01 mm	1.024 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

666K101 Series

Flat Ribbon Cable Clear 10 Conductors 0.039" (1.00mm) Flat Cable 250.0' (76.20m)
