666K101-20

Active

Cicoil

CBL RIBN 20COND 0.039 CLR

Deep-Dive with AI

Search across all available documentation for this part.

666K101-20

Active

Cicoil

CBL RIBN 20COND 0.039 CLR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.94

Description

General part information

666K101 Series

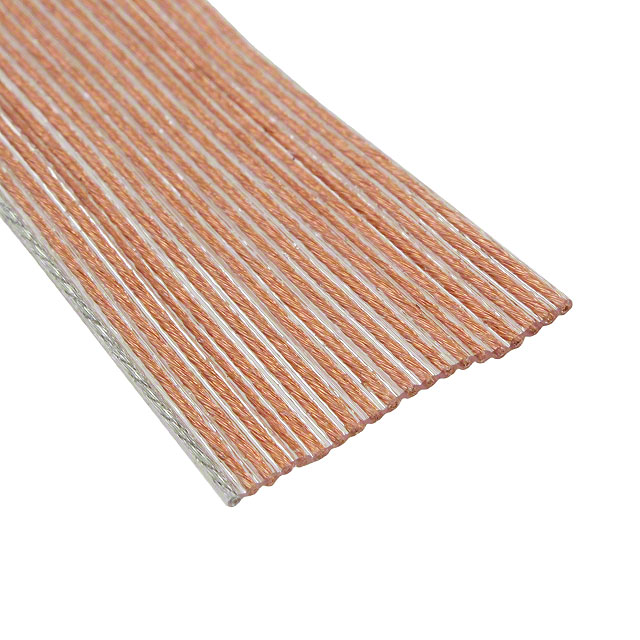

Flat Ribbon Cable Clear 20 Conductors 0.039" (1.00mm) Flat Cable 1000' (304.80m)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	666K101-20	666K101 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Bare	Copper, Bare
Current Rating (Amps)	5 A	5 A
Insulation Resistance	200 MOhm	200 MOhm
Jacket (Insulation) Material	Flexx-Sil™	Flexx-Sil™
Jacket Color	Clear	Clear
Length	1000 ft, 50 ft	25 - 6000 ft
Length	304.8 m, 15.24 m	7.62 - 304.8 m
Length	-	100 ft
Length	-	30.48 m
Number of Conductors	20	10 - 50
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Ratings	CE, UL E324413	CE, UL E324413
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	0.787 in	0.787 - 1.575 in
Ribbon Width	20 mm	1.181 - 40 mm
Ribbon Width	-	0.63 - 1.339 in
Ribbon Width	-	16 - 34 mm
Ribbon Width	-	30 mm
Ribbon Width	-	1.969 in
Ribbon Width	-	50.01 mm
Ribbon Width	-	10 - 43.99 mm
Ribbon Width	-	0.394 - 1.732 in
Shielding	Unshielded	Unshielded
Voltage	450 V	450 V
Wire Gauge	28 AWG	28 AWG

666K101 Series

CBL RIBN 16COND 0.039 CLEAR 50'

Part	Length	Length	Ratings	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length [x]	Length [x]	Jacket Color	Ribbon Width [y]	Ribbon Width [y]	Number of Conductors	Insulation Resistance	Pitch [x]	Pitch [x]	Voltage	Shielding	Cable Type	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Current Rating (Amps)	Ribbon Width	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [custom]	Ribbon Width [custom]
Cicoil 666K101-16	50 ft, 1000 ft, 6000 in	15.24 m, 152.4 m, 304.8 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™	100 ft	30.48 m	Clear	0.63 in	16 mm	16	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A
Cicoil 666K101-40-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			40	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A	40 mm	1.575 in
Cicoil 666K101-34-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear	1.339 "	34 mm	34	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A
Cicoil 666K101-30-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			30	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A	1.181 in		30 mm
Cicoil 666K101-50-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			50	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A				1.969 in	50.01 mm
Cicoil 666K101-20	50 ft, 1000 ft	15.24 m, 304.8 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			20	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A	20 mm	0.787 in
Cicoil 666K101-44-050	50 ft	15.24 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™			Clear			44	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A						43.99 mm	1.732 in
Cicoil 666K101-10	25 ft, 50 ft, 3000 ", 6000 in	7.62 m, 15.24 m, 76.2 m, 152.4 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™	100 ft	30.48 m	Clear			10	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A						10 mm	0.394 in
Cicoil 666K101-26	50 ft, 6000 in	15.24 m, 152.4 m	CE, UL E324413	Copper, Bare	-65 ░C	260 ░C	Flexx-Sil™	100 ft	30.48 m	Clear			26	200 MOhm	0.039 in	1 mm	450 V	Unshielded	Flat Cable	0.89 mm	0.035 in	28 AWG	5 A	26.01 mm	1.024 in
